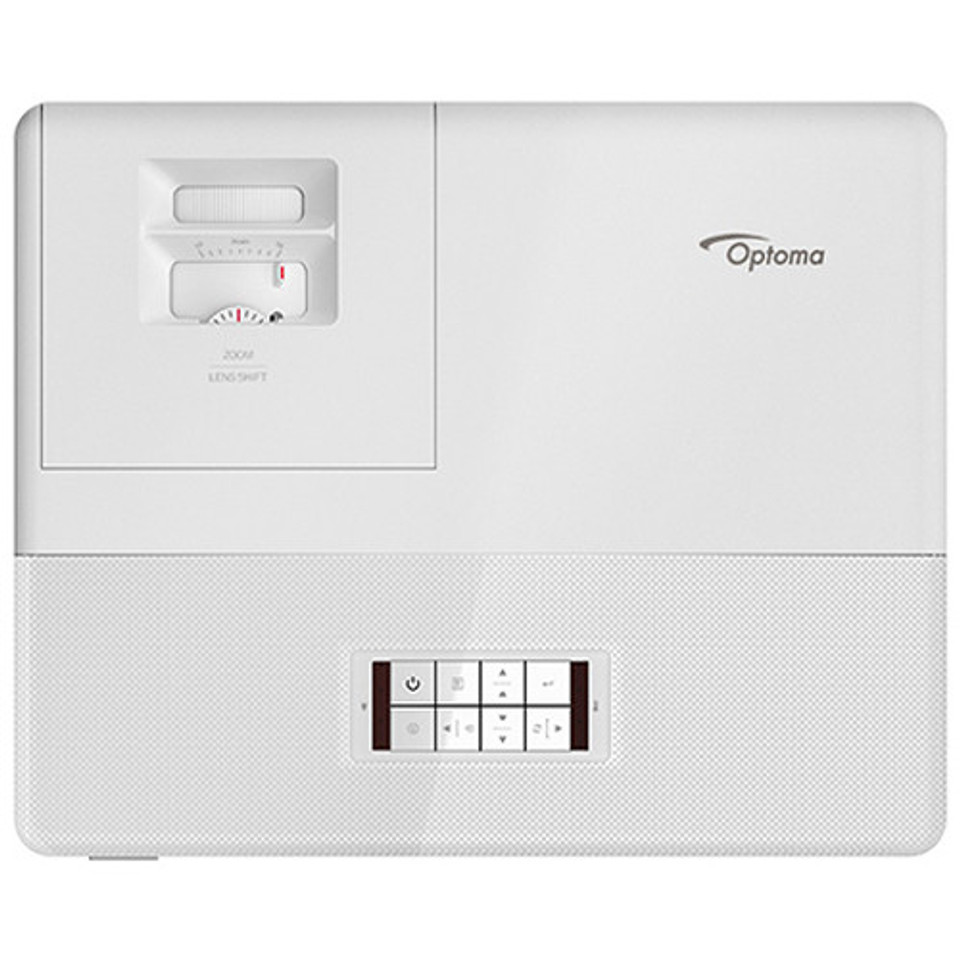

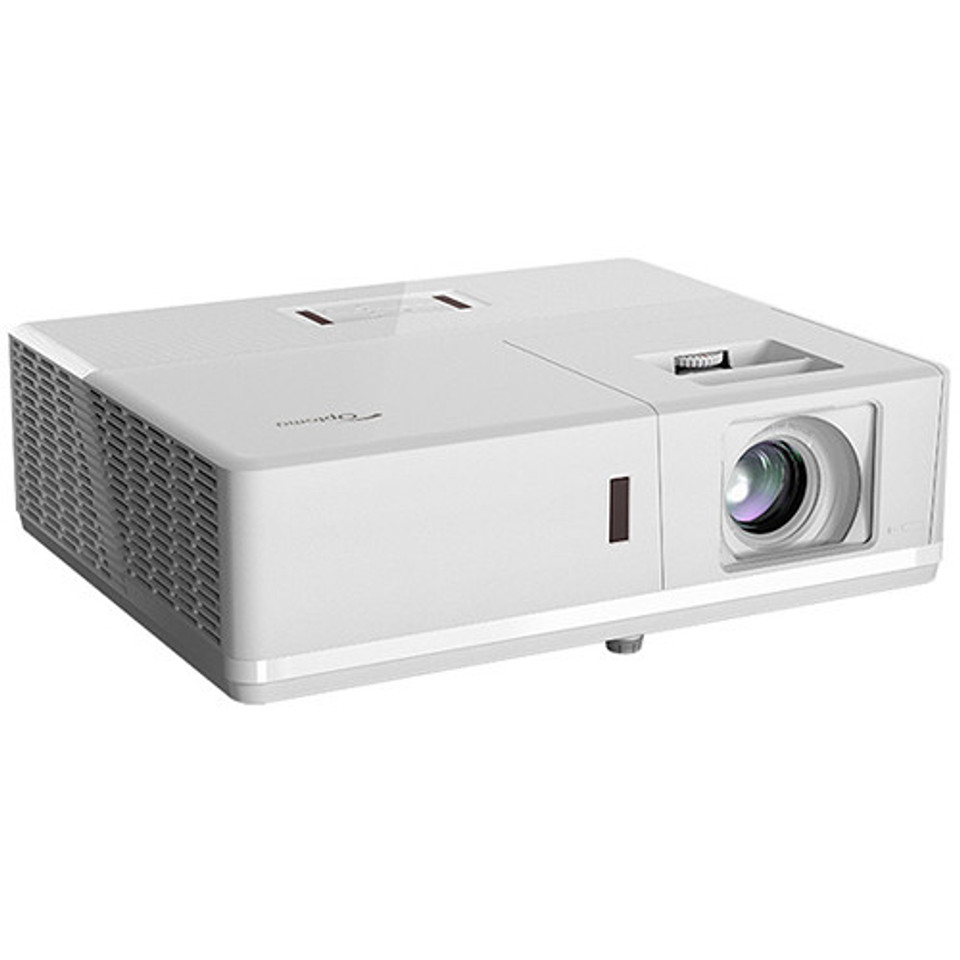

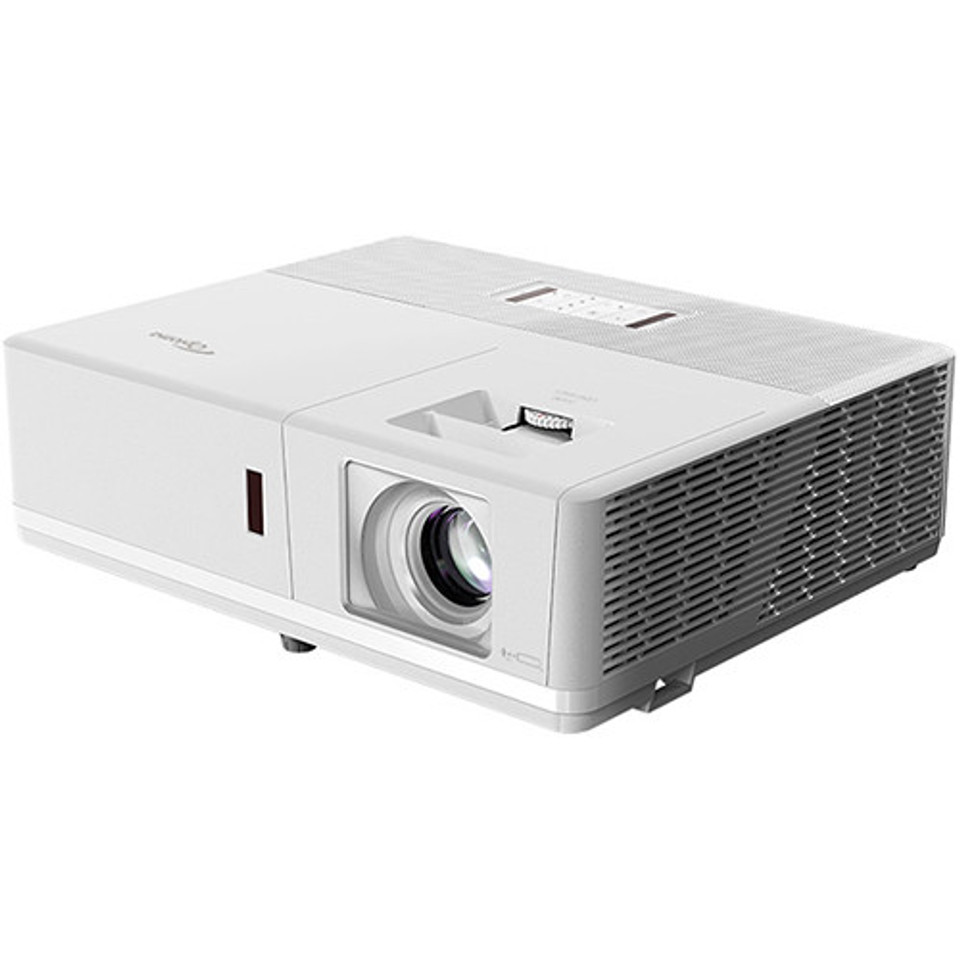

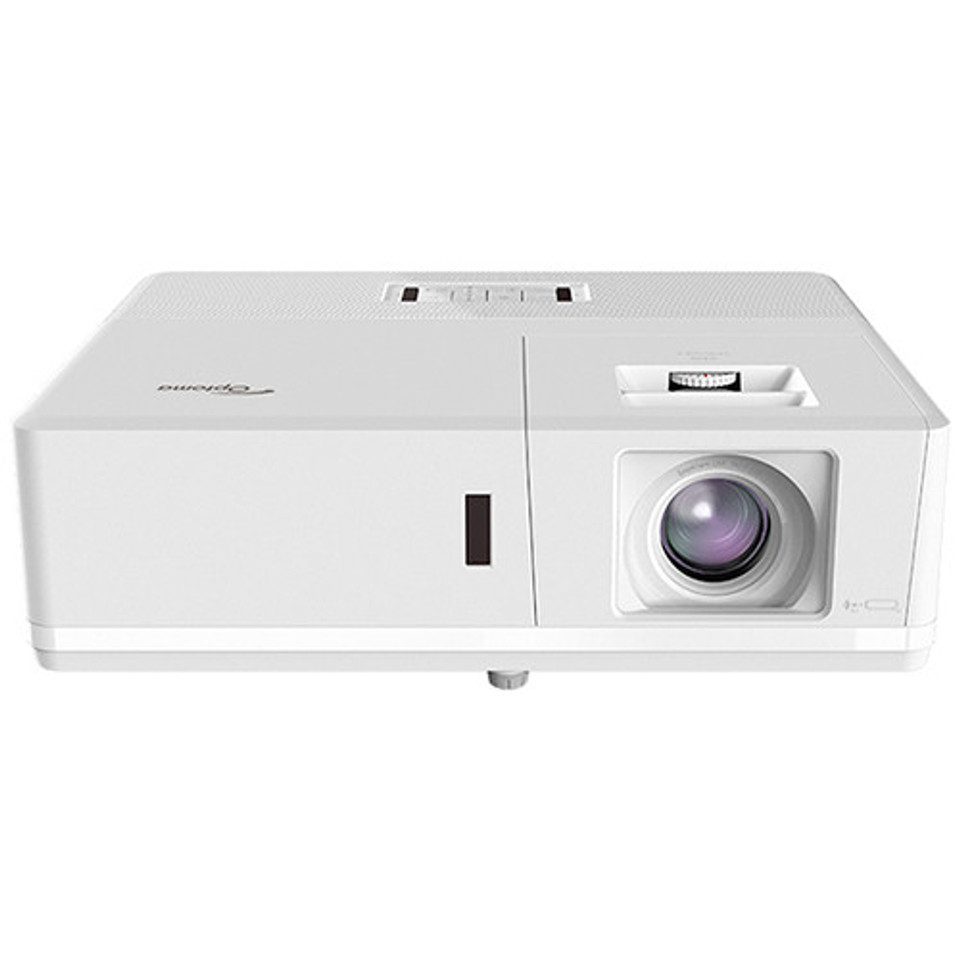

Optoma ZU506T-W Technology 5000-Lumen WUXGA Laser DLP Projector (White)

Free Shipping
(No reviews yet) Write a Review
  • Optoma Technology ZU506T-W 5000-Lumen WUXGA Laser DLP Projector (White)
  • Optoma Technology ZU506T-W 5000-Lumen WUXGA Laser DLP Projector (White)
  • Optoma Technology ZU506T-W 5000-Lumen WUXGA Laser DLP Projector (White)
  • Optoma Technology ZU506T-W 5000-Lumen WUXGA Laser DLP Projector (White)
  • Optoma Technology ZU506T-W 5000-Lumen WUXGA Laser DLP Projector (White)
Frequently bought together:


Optoma Technology ZU506T-W Overview

Enjoy bright images and high dynamic contrast with the white Optoma ZU506T-W 5000-Lumen WUXGA Laser DLP Projector. Its native 1920 x 1200 resolution displays data and images clearly at various viewing distances, while its 300,000:1 dynamic contrast ratio helps enhance detail in dark images. Its 1.4 to 2.24:1 throw ratio allows you to place the projector relatively far from the screen without losing focus.

The ZU506T-W features HDBaseT, S-Video, RCA composite video, two VGA, and two HDMI inputs, one of which is MHL-compatible for wired streaming from your compatible smart device. Two onboard 10W speakers mitigate the need for an external speaker system, but you can connect one with the 1/8" or RCA outputs. A carrying case and an IR remote control with a built-in laser pointer are included as an added convenience.

DLP Technology

Digital Light Processing (DLP) technology is designed to provide digital projection with high contrast, fast response time, good pixel structure, and virtually no color degradation.

HDBaseT Connectivity

Simplify installations by transmitting uncompressed A/V and control commands using shielded Cat 6 cables up to 325'.

Four-Corner Adjustment

Four-corner geometric correction is designed to provide quick and easy image adjustments for any of the corner points of the image for uneven or angled projection surfaces.

Vertical Lens Shift

Vertical lens shift helps simplify installation by letting you shift the image up and down without image distortion to provide a wider range of projector placement possibilities.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232.

Direct Power On & Signal Power On

The Direct Power On feature lets you turn the projector on directly from the power source, allowing for installation with a power-on timer. Signal Power On capability turns the projector on when you power on your source device.

Crestron RoomView Network Control

Software provides a custom configurable interface to monitor, manage, and control the projector and other compatible connected devices remotely from a computer.
  • Manage up to 250 projectors at the same time via a master computer.
  • Control and adjust the projector's settings using a web browser page, including its OSD menu control.
  • Set up email alerts for warning messages.
  • Well-suited for large installations in educational and business environments.

3D Compatibility

Display 3D content from almost any compatible source, including 3D Blu-ray players, broadcast, and game consoles. 144 Hz rapid-refresh rate is supported for smooth, flicker-free images. Optional compatible 3D glasses are required.

Optoma Technology ZU506T-W Specs

Image Display
Display System 0.67" DMD DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Maximum: 4K UHD - 3840 x 2160
Maximum Brightness 5000 Lumens
Uniformity 80%
Offset 99% - 107%
Aspect Ratio Native: 16:10
Supported: 16:9
Supported: 4:3
Dynamic Contrast Ratio 300,000:1
DLP Link 3D Yes
Supported 3D Formats Frame Packing
Side by Side
Top Bottom
Color Wheel 4-Segment (RGBY)
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15.375 to 91.146 kHz
Vertical: 24 to 85 Hz
Focus Manual
Lens f/2.5 - 3.26 (f = 20.91 - 32.62 mm)
Lens Shift Vertical: + 8%
Optical Zoom Manual: 1.6x
Throw Distance 3.28 - 32.8' / 1 - 9.997 m
Throw Ratio 1.4 to 2.24:1
Projection Size 20.8 - 331.6" / 52.83 - 842.26 cm
Keystone Correction Vertical: ± 30°
Horizontal: ± 30°
Digital Zoom 2x
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Stereo)
Speaker Power 20W
Projection Tilt Option Yes
Remote Laser Pointer

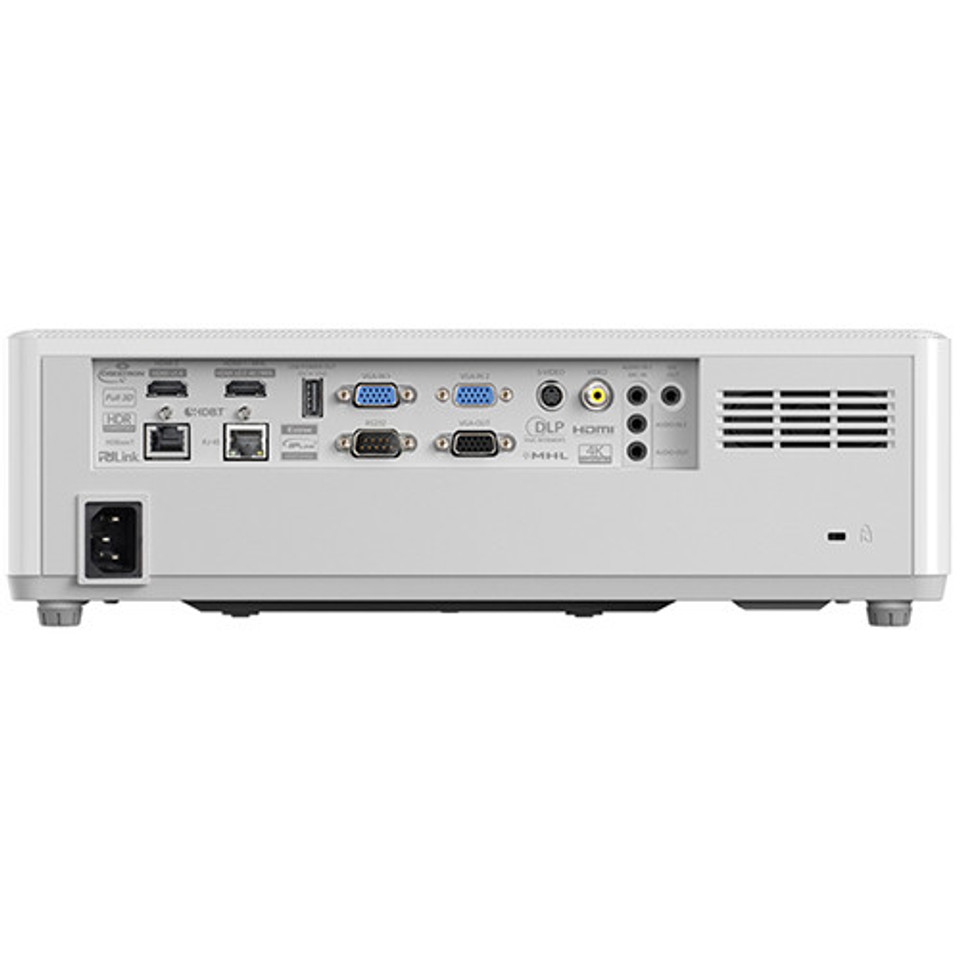

Input/Output Connectors
Inputs/Outputs 1 x HDBaseT (RJ45) Audio, Control, Data, Video
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Control, Power, Video Input
2 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Output
1 x S-Video (4-Pin DIN) Video Input
1 x Composite (RCA) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Line/Mic Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9/DB-9) Control
1 x 12 V Trigger Control Output
Wireless LAN / Wi-Fi None
Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 30,000 Hours
Fan Noise Full Brightness: 36 dB
Low Brightness: 30 dB
Security Cable Lock Slot
Password Protection
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 353 W
Low Brightness: 321 W
Operating Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 0 to 85%
Dimensions (W x H x D) 14.7 x 4.6 x 11.9" / 37.3 x 11.7 x 30.2 cm
Weight 12.12 lb / 5.5 kg
Packaging Info
Package Weight 16 lb
Box Dimensions (LxWxH) 21.9 x 18 x 9.5"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
