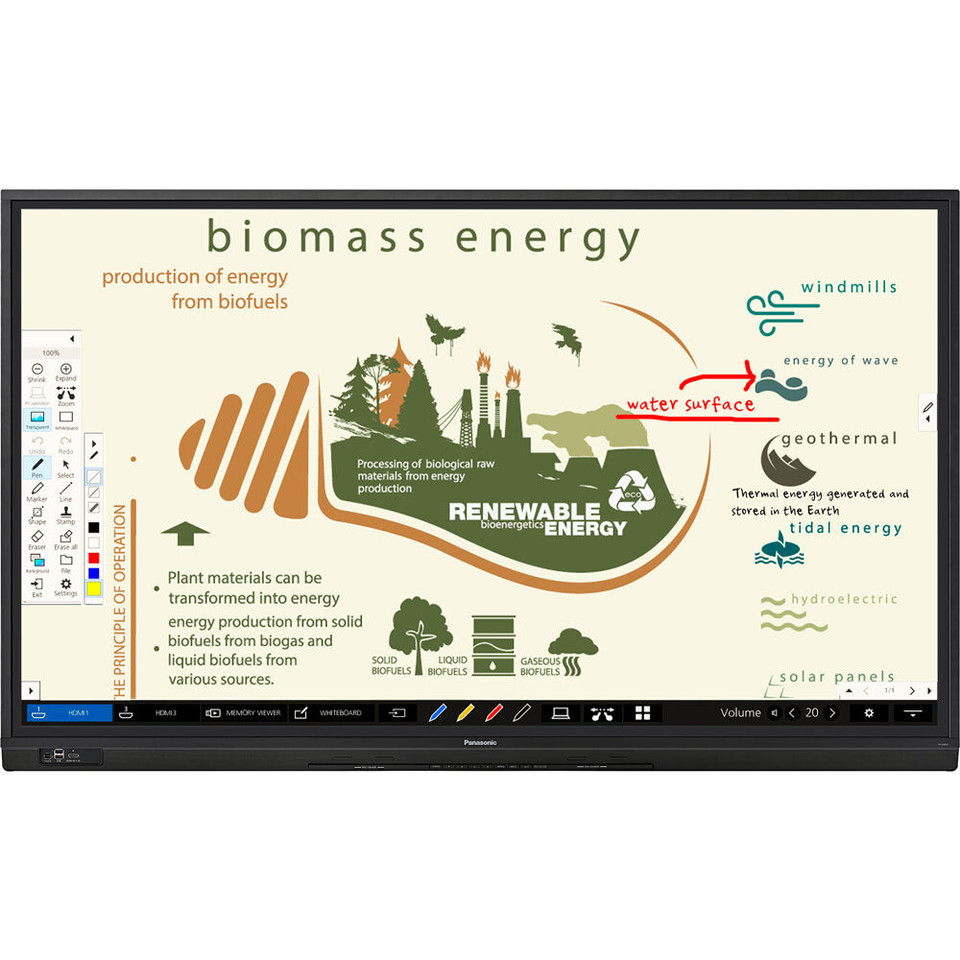

The Panasonic BQ1 75" Class 4K UHD Touchscreen Education LED Display is compatible with 4K/60p signals and can be used to share high image quality teaching materials and documents. Furthermore, it features convenient functions, such as the intuitive whiteboard function. This touchscreen display enables you to easily carry out participatory classes and active meetings.
Display
| Screen Size (Diagonal) | 75" |
| Resolution | 3840 x 2160 |
| Brightness | 500 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 64.9 x 36.5" / 1649.6 x 927.9 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms (GtG) |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 3 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x VGA 15-Pin 2 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x HDMI – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB 3.0 / 3.1/3.2 Gen 1, USB-A (Rear) 2 x USB 2.0, USB-A (Front) 1 x Unspecified USB, USB-B |
| Ethernet Ports | 1 |
| Control I/O | RS-232C via DE-9/DB-9 Input |
| Number of OPS/Expansion Slots | 1 |
General
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
Surface
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 20 |
| Surface Treatment | Anti-Glare |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
| External Speaker Output | 2 x 15 W |
Hardware
| OS Compatibility | Windows macOS *As of January, 2022: Check with manufacturer for the most up-to-date compatibility |
Electrical
| Power Consumption | Typical: 278.0 W Maximum: 363.0 W Standby: 0.5 W |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
Physical
| Wall Mounting | 600 x 400 mm |
| Bezel Thickness | 16.3 mm (Right/Top/Left) 54.3 mm (Bottom) |
| Duty Cycle | 18 Hours |
| Dimensions | 67.6 x 40.6 x 4.2" / 1716.0 x 1032.0 x 107.0 mm |
| Weight | 124.8 lb / 56.6 kg |
1 Year Parts & Labor Manufacture Warranty
