Planar Systems UR7551-MX 75" UltraRes UHD 4K LCD Display - 997-8450-00
- SKU:
- 997-8450-00
- UPC:
- 810689003632
- MPN:
- 997-8450-00
- Condition:
- New
- Shipping:
- Free Shipping
Description
The Planar UR7551-MX UltraRes™ is a 75" Ultra HD (3840 x 2160) professional LCD display with best-in-class image and color quality for native 4K and upscaled content. This 500 nit 75" display supports multi-source viewing, 4K @ 60Hz, HDCP 2.2 compliance and portrait orientation. Planar UltraRes Series displays offer superior performance with exceptional 4K clarity and advanced processing ideal for applications ranging from collaborative meeting spaces to high impact digital signage.
The Planar UltraRes Series also supports native 4K resolution at up to 60Hz via HDMI 2.0 and DisplayPort 1.2, enabling smooth motion video and mouse tracking. Compatible with new and emerging 4K sources, the Planar UltraRes Series HDMI 2.0 inputs are HDCP 2.2 compliant. For added flexibility, all Planar UltraRes Series displays come standard with expansion slots that support Intel’s Open Pluggable Specification (OPS), making them compatible with a variety of OPS devices.
Advanced multi-source viewing
Featuring built-in Planar® MediaPlex™ Plus processing, users can view multiple sources simultaneously in picture-in-picture, dual, triple, or quad layouts. Planar MediaPlex Plus offers the ability to save frequently used configurations which can be recalled quickly. Planar MediaPlex Plus also allows users to receive remote monitoring alerts via email when a designated event occurs. For precise image control, adjustments can be made within each zone allowing users to optimize the picture quality at the source level. With the Planar® UltraRes™ App, use an iPhone®, iPad® or Android™ device to conveniently manage multi-source viewing on Planar UltraRes Series displays.
Innovative mounting system
Planar UltraRes Series features the Planar® Profile™ Mounting System for an extremely slim profile when wall-mounted and provides a lockable, front-service access mode providing ease of service without removing the display from the wall.
Enhanced durability and clarity
Planar UltraRes Series displays are available with optional Planar® ERO™ (Extended Ruggedness and Optics™) technology, which features an optically-bonded glass front that protects the LCD from damage in high traffic, public environments. Planar UltraRes Series displays with Planar ERO also improves perceived contrast by more than 300 percent, giving viewers the highest quality visual experience, making it more readable and impactful, even in bright public venues.
Breakthrough power management
Planar UltraRes Series displays come standard with power redundancy, ensuring continuous operation. With superior thermal control, Planar UltraRes Series displays operate without fans, providing whisper quiet operation and reduced points of failure.
Crestron modules
Crestron Modules for Planar UltraRes Series displays are available, making it even easier for resellers to integrate and consultants to recommend Planar UltraRes Series. Resellers who do integration have estimated these modules can save hours of programming time, reducing installation time, and costs.
In The Box
- LCD display
- LCD mounts (optional)
- Mounting template
Manuals/Guides
Manufacturer Specs
Model: UR7551-MX Specifications | |
Description | UltraRes Series 75" 4K LCD Display |
Display Resolution | Ultra HD (3840 x 2160) |
Screen Size | 75 in. (diagonal) |
Aspect Ratio | 16:9 |
Display Active Area | 65.0” (1650mm) x 36.5” (928mm) |
Cabinet Dimensions (W x H x D) | 66.5" x 38.1" x 3.4" (1690mm x 968mm x 87mm) |
Dimensions, including wall mount | 66.5" x 38.1" x 3.4" (1690mm x 968mm x 87mm) |
Bezel Width | 0.8" (20mm) |
Brightness (typ) | 500 nits |
Response Time (typ) | 6 ms |
Frame Rate | 120Hz |
Contrast Ratio (typ) | 1200:1 |
Viewing Angle (typ) | 178° |
Color Gamut | 72% NTSC |
Display Color | >1 billion colors. Full 10 bit data path |
Modes | 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz |
Pixel Pitch | 0.429 mm |
Weight | 165 lb (75 kg) |
Weight (Shipping) | TBD |
Backlight | LED |
Line Voltage | 100-240V; 50/60Hz |
Power Consumption (typ) | 200W (standby: <1.2W) |
Operating Temperature | 0° to +40°C (32° to 104°F) at up to 1500m, 0° to +35°C (32° to 95°F) at up to 3000m |
Humidity | 20 - 85% RH (non-condensing) |
Approvals | FCC Class A, CE, cTUVus |
External Connections | DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1 |
Audio Output | PC Line Out, S/PDIF |
Multi-Source Views | PiP, Dual, Triple, Quad |
Display Control | IR, RS-232, LAN, Keypad, Mobile app |
Speakers | 10W x 2 built-in |
Orientation | Landscape/Portrait |
Mounting | Planar Profile Mounting System or VESA: 400 x 400 mm |
Fanless | Yes |
HD format | 4K UHD 2160p |
Display Technology | Edge-lit LED LCD |
Options / Features | MediaPlex Plus Processing, Scheduling, Presets, Redundant power supply, TAA compliant |
Warranty | 3 years Advance Exchange |
Recommended Usage | Up to 24x7 operation |
Planar Part Number | 997-8450-00 |
UPC | 8 10689 00362 5 |
Tech Specs
General Attributes | |
---|---|
Warranty | 3 YEARS |
Product Weight | 165 LBS |
Freight Class | 150 |
Warranty Details | 3 years Advance Exchange |
UPC | 810689003625 |
Product Height | 38.1 IN |
Product Width | 66.5 IN |
Country of Origin | United States |
Related Products


Planar Systems UR9851 98" UltraRes UHD 500 Nits 4K LCD Display - 997-7960-00
Planar

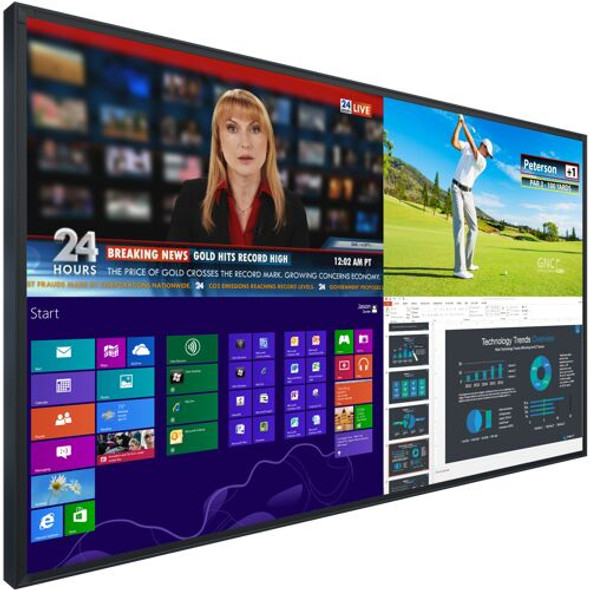

Planar Systems UR9851 UltraRes UHD 4K LCD Display with ERO (997-8091-00)
Planar

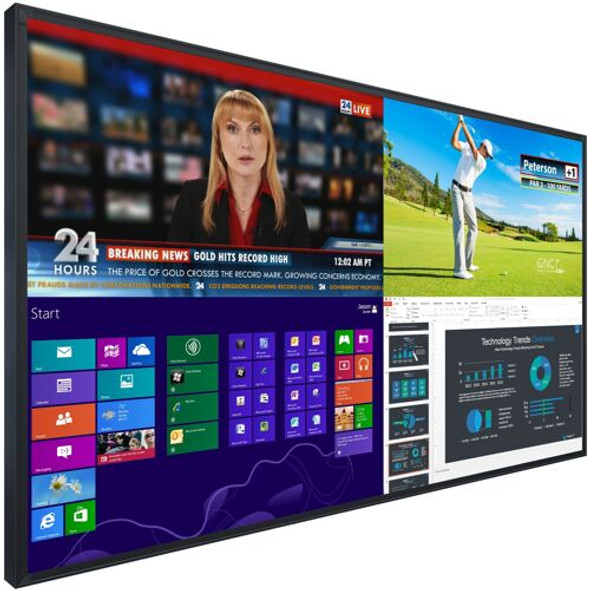

Planar Systems UR7551-MX 75" UltraRes UHD 4K LCD Display with ERO - 997-8451-00
Planar

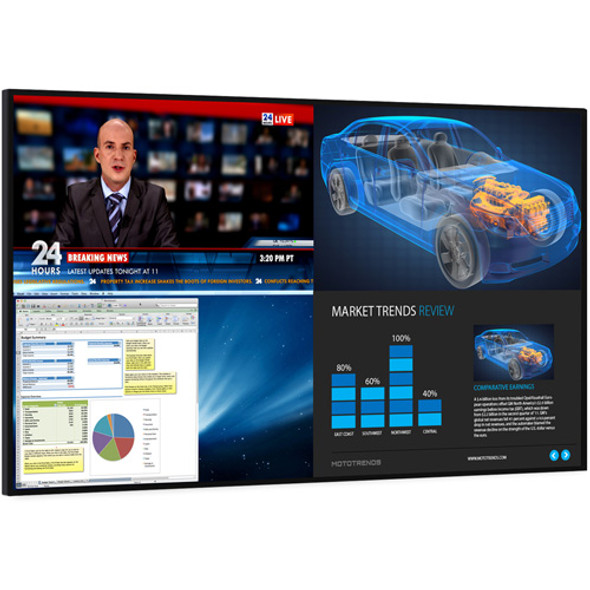

Planar Systems UR8651-MX 75" UltraRes UHD 4K LCD Display - 997-8520-00
Planar

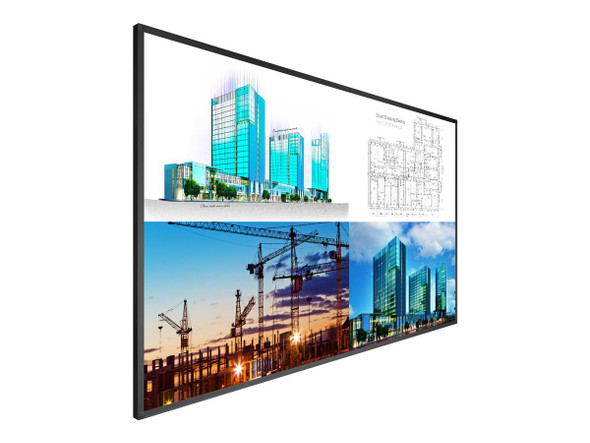

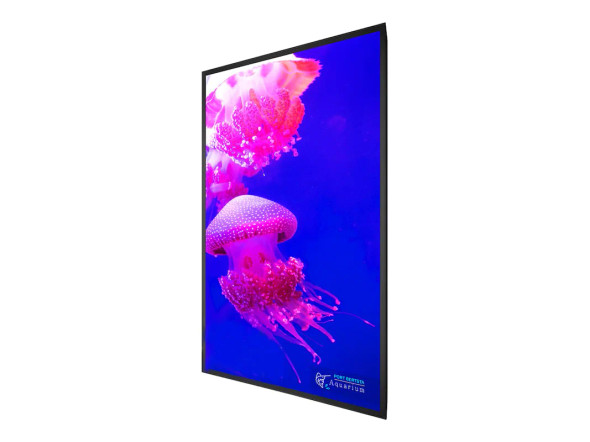

Planar Systems UltraRes X URX75 75" Class HDR 4K UHD LED Commercial Display - 998-2161-00
Planar
Customers Also Viewed

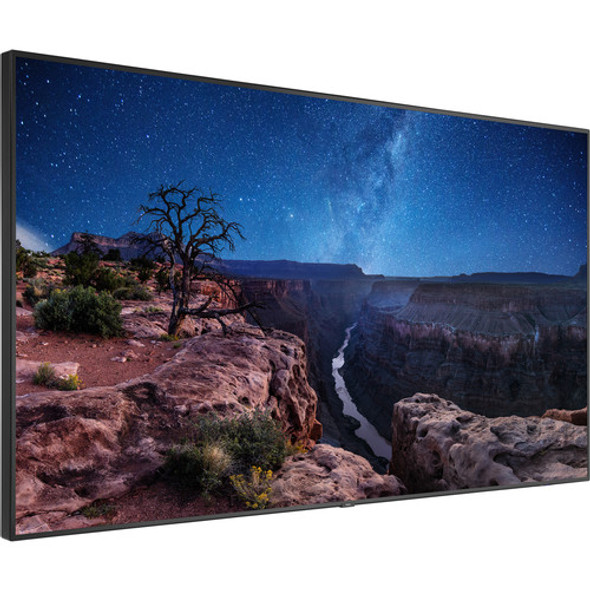

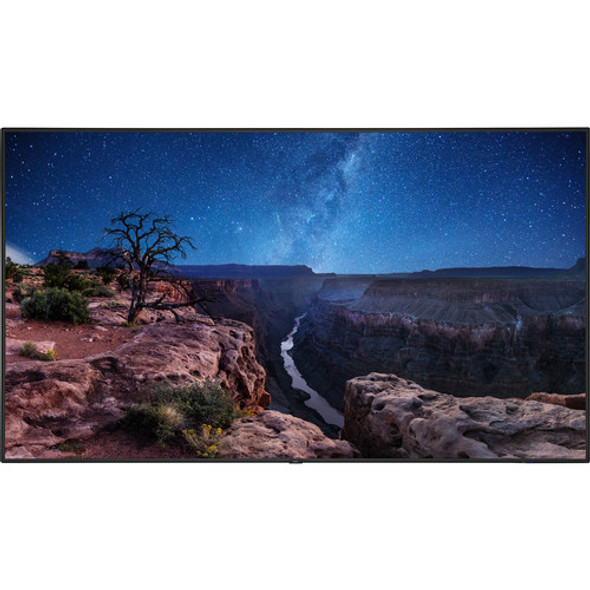

NEC V984Q-PC4 MultiSync 98" Class 4K UHD Commercial LED Display with Internal Digital Signage OPS PC
