Panasonic D3LET Overview

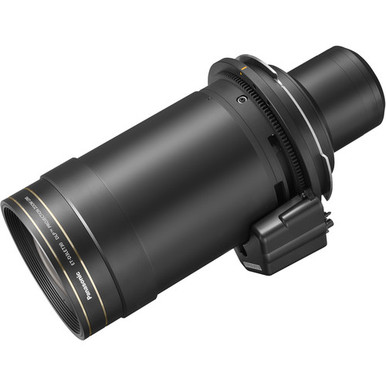

Designed for use with select 3-chip DLP projectors, the 50.4-98mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal distance. The zoom lens is equipped with an EEPROM (electronically erasable programmable read-only memory) and a stepping motor. Included with the lens is a protective lens cover.
Key Features
- For Select 3-Chip DLP Projectors
- 50.4-98mm Focal Distance
- f/2.5 Aperture
- EEPROM and Stepping Motor
- Lens Cover Included
Panasonic D3LET Specs
General
| Compatibility | Panasonic PT-RQ32K Panasonic PT-RZ31K Panasonic PT-RS30K Panasonic PT-RQ22K Panasonic PT-RZ21K Panasonic PT-RS20K |
| Lens Type | Zoom |
| Motorized | Yes |
Performance
| Throw Ratio | PT-RQ32K: 2.57 to 5:1 (16:10) PT-RZ31K/RZ21K: 2.40 to 4.66:1 (16:10) PT-RS30K/RS20K: 2.59 to 5.05:1 (4:3) |
| Aperture | f/2.5 |
| Focal Length | f = 50.4 to 98mm |
Physical
| Exterior Dimensions | ø: 6.1 x L: 12.7" / ø: 154.0 x L: 322.0 mm |
| Weight | 12.79 lb / 5.8 kg |
Packaging Info
| Package Weight | 16.31 lb |
| Box Dimensions (LxWxH) | 18.6 x 13 x 11.2" |
1 Year Parts & Labor Manufacture Warranty
