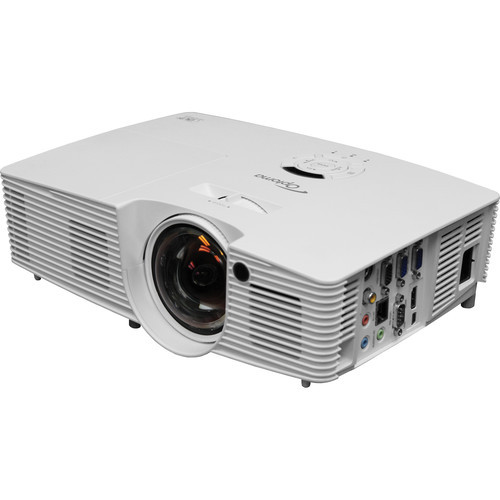

Optoma X316ST XGA Short-Throw Projector

(No reviews yet) Write a Review
SKU:
X316ST
UPC:
796435419165
MPN:
X316ST
Condition:
New
Shipping:
Free Shipping
  • Optoma X316ST XGA Short-Throw Projector
  • Optoma X316ST XGA Short-Throw Projector
  • Optoma X316ST XGA Short-Throw Projector
$729.00
Frequently bought together:

Description

Optoma Technology X316ST Overview

The 0.6:1 throw ratio lens on the X316ST Short-Throw DLP Multimedia Projector from Optoma makes it ideal for classrooms, small conferences rooms, rear projection, and other tight spaces where the projector needs to be placed relatively close to the screen. It features the XGA (1024 x 768) format, which - at a 4:3 aspect ratio - is ideal for PowerPoint and other presentations. With a brightness of 3400 lumens, combined with the short throw distance required, the X316ST provides sufficient output to overcome a reasonable amount of ambient light for use in rooms where the lighting cannot be fully controlled.

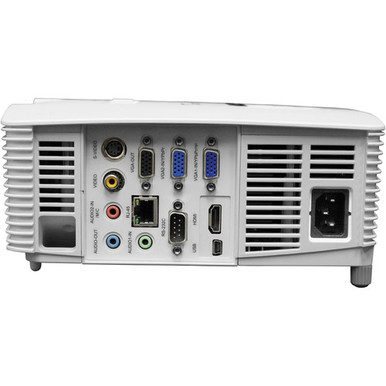

Just about every input possibility is covered on the X316ST. This includes an HDMI input with 3D support, two VGA inputs and one output, plus composite and S-video inputs for legacy SD equipment. There are two separate audio inputs to accompany the analog video inputs, and there is a VAO audio output that loops through the audio accompanying whichever input is selected. In case a separate sound system is unavailable, there is also a built-in 10-watt speaker.

An IR remote is included, featuring a laser pointer and mouse control for giving presentations. It also has RS-232 for integration with control systems such as Crestron, plus an Ethernet port for control over a local network, helping reduce IT administrative costs.

Key Features

  • Brightness of 3400 Lumens
  • XGA (1024 x 768) Native Resolution
  • Short 0.6:1 Throw Ratio
  • 2x VGA, HDMI, S-Video + Composite Inputs
  • Analog Audio Input and Output
  • Powered VGA Port for Optional Dongle
  • Built-in 10-Watt Speaker
  • Supports HDMI 1.4a Mandatory 3D Formats
  • Ethernet and RS-232 Controllable
  • IR Remote with Mouse Control + Laser

Short 0.6:1 Throw Ratio

Throw ratio is one of the most important specifications a projector lens has as it tells you the image size (width) you will get at a given distance from the screen. For example, at a 46" distance, this projector will throw an 77"-wide (96"-diagonal) image

Single-Chip DLP Technology

Uses a combination of a 0.55" chip covered in millions of micro-mirrors and a color wheel to produce an image. DLP features less spacing between pixels and better contrast than many comparable LCD-based systems

3400 Lumen Lamp

A single lamp provides 3400 lumens brightness in Normal mode, and is estimated to last 4000 hours (up to 7000 hours if continuously used in the lower brightness ECO+ mode). To determine the ideal brightness level for your application, you will need to take into account the screen width, distance from the projector to the screen (throw distance), amount of ambient light near the screen, and the reflectivity (gain) of the screen surface used

4:3 Native Aspect Ratio

This projector features the XGA format, which produces a 4:3 aspect ratio picture optimal for PowerPoint presentations and many still image formats. The wider 16:9 HDTV and 16:10 computer aspect ratios can still be displayed - either by cropping the sides of the image, "letterboxing" (filling the remaining space with black bars top and bottom), or applying an anamorphic squeeze, which distorts the picture

HDMI 1.4a Mandatory 3D Compliance

This means you can watch 3D video from most HDMI 1.4a 3D sources, including Blu-ray Discs, many computer graphics cards, and select game consoles. Active 3D glasses - such as ZD302 - available separately

Powered VGA Port

A powered VGA port enables the projector to be used with the BI-EXTBG03 wireless VGA dongle, which is available separately

Remote Mouse Control

When connected to a computer via the mini-USB type-B female port (cable available separately) it is possible to use the projector's remote to provide mouse navigation functionality. On top of that, the remote features a built-in laser pointer - effectively turning the remote into a presentation mouse

Optoma Technology X316ST Specs

Image Display

Display System 1-Chip 0.55" DC3 DMD DLP
Native Chip Resolution 1024 x 768 (XGA)
Supported Resolutions WUXGA - 1920 x 1200
UXGA - 1600 x 1400
SXGA+ - 1400 x 1050
WXGA+ - 1440 x 900
WXGA - 1280 x 800
SXGA - 1280 x 960
XGA - 1024 x 768
SVGA - 800 x 600
VGA - 640 x 480
Maximum Brightness 3400 Lumens
Uniformity >80%
Aspect Ratio Native: 4:3
Supported: 16:9
Supported: 16:10
DLP Link 3D Yes
Supported 3D Formats Frame Packing
Side by Side
Top Bottom
Color Depth 10-Bit (1.07 Billion Colors)
Scan Vertical: 24 to 85 Hz or 120 Hz
Horizontal: 15.375 to 91.1 kHz

Lens

Focus Manual
Lens f/2.7 (f = 7.15 mm)
Throw Distance 1.3 - 10.1' / 0.396 - 3.078 m
Throw Ratio 0.617:1
Projection Size 59.8 - 247.3" / 151.89 - 628.14 cm

Features

Keystone Correction Vertical: ± 40°
Digital Zoom 2x
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Closed Captioning Yes

General

Lamp Power 210 W
Expected Lamp Life Full Brightness: 4000 Hours
Low Brightness: 8000 Hours
Fan Noise Medium Brightness: 29 dB
Security Cable Lock Slot
Padlock
Security Bar
Power Consumption Medium Brightness: 280 W
Low Brightness: 194 W
Standby Mode (Lamp Off): < 0.5 W
Dimensions (W x H x D) 12.4 x 4.0 x 8.8" / 31.5 x 10.2 x 22.4 cm

Packaging Info

Package Weight 8.35 lb
Box Dimensions (LxWxH) 15.512 x 11.181 x 6.929"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
