Description
APC BR1500G Overview

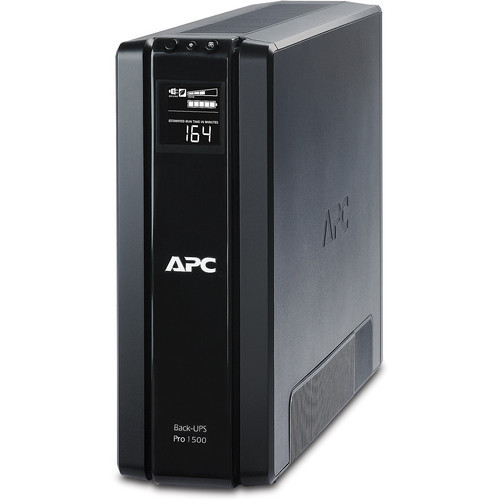

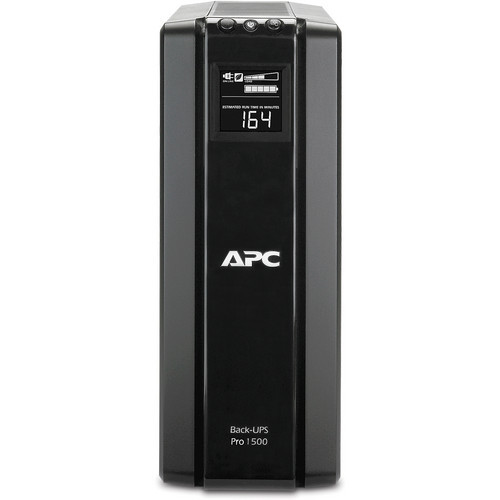

The Power-Saving Back-UPS Pro 1500 (120V) from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery.
Key Features
- Output: 865W/1500VA
- Input: 120V
- 5x Battery Backup, 5x Surge Protection
- NEMA 5-15R
- Recharge Time: 8 Hours
- Audio Alarms
- RJ-45 Connector
- LCD Status and Control Console
- Cold Start/Hot Swappable Batteries
Battery and Surge Protected Outlets
Back up and protect your hardware and data during power outages, surges and spikes.
DataLine Surge Protection
Provides protection of connected equipment from power surges on the data lines.
Surge Only Outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Energy Management Function
Energy saving feature automatically power off peripherals when the a master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Green Mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Customizable Voltage-Transfer Points
Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.
Customizable Voltage Sensitivity
Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.
Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Cold-Start Capable
Provides temporary battery power when the utility power is out.
Battery Failure Notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Automatic Self-Test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Transformer-Block Spaced Outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Resettable Circuit Breaker
Easy recovery from overloads; no need to replace a fuse.
Simple Battery Replacement
Increases UPS availability by allowing quick, easy battery replacement.
USB Connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Audible Alarms
Provides notification of changing utility power and UPS power conditions
Disconnected Battery Notification
Warns when a battery is not available to provide backup power.
APC BR1500G Specs
General
| Total Outlets | 10 |
| Protected Outlets | 5 x NEMA 5-15R (Battery and Surge) 5 x NEMA 5-15R (Surge Only) |
| Plug Type | NEMA 5-15P |
| Data Line Protection | RJ45 |
| Communications | USB, Serial via |
| Noise Filtering | 5% |
Power
| Surge Energy Rating | 354 Joules |
| Maximum Wattage | 865 W |
| Nominal Input Voltage | 120 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Load Capacity | 1500 VA |
| Maximum Efficiency | 87% |
| Waveform | Simulated Sine Wave |
Battery
| Cells | 1 |
| Chemistry | Lead-Acid |
| Recharge Time | 8 Hours |
| Replacement Battery | APCRBC124 APCRBC124J |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | 23 to 113°F / -15 to 45°C |
| Operating Altitude | 10,000' / 3000 m |
| Storage Altitude | 50,000' / 15,000 m |
| Certifications | REACH, RoHS, as per Manufacturer |
Physical
| Cable Length | 6' / 1.8 m |
| Dimensions (W x H x D) | 11.85 x 4.41 x 15.04" / 301 x 112 x 382 mm |
| Weight | 26.6 lb / 12.1 kg |
Packaging Info
| Package Weight | 30 lb |
| Box Dimensions (LxWxH) | 19.5 x 16 x 9.5" |
