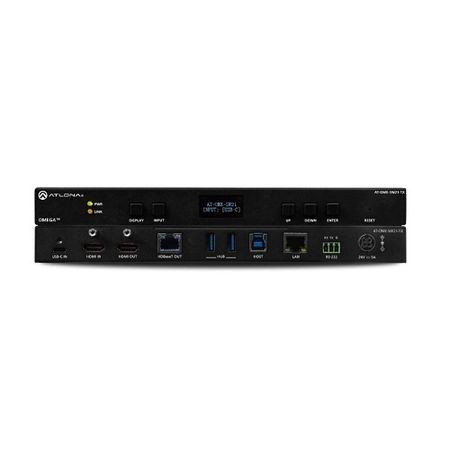

Atlona AT-OME-SW21-TX HDBaseT Transmitter with USB-C and HDMI Inputs Plus USB Hub
The Atlona AT-OME-SW21-TX is a 2×1 switcher and HDBaseT transmitter with USB-C and HDMI inputs. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB 2.0 over distances up to 330' (100m). Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-SW21-TX features mirrored HDMI and HDBaseT outputs and is HDCP 2.3 compliant. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and interactive touch displays. The OME-SW21-TX includes a USB hub which supports USB 3.2 Gen 1 up to 5 Gbps, and USB 2.0 up to 480 Mbps for local devices and 120 Mbps over HDBaseT. Host switching is provided with USB type B and USB-C interfaces, plus two USB type A interfaces for peripherals as well as integrating with USB 3.2 Gen 1 extenders. Both inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p is available for the HDMI output when connected to an HD sink. The OME-SW21-TX is ideal for use with Omega Series receivers, switchers with HDBaseT inputs, or even as a standalone AV system unit.
- Two-input switcher and HDBaseTTM transmitter with USB-C and HDMI inputs
- USB-C input for AV, USB data, and optional device charging (up to 60W)
- Mirrored HDBaseT and HDMI outputs
- Extend AV, power, USB 2.0 data, control, and Ethernet up to 330' (100m)
- Integrated USB 3.2 Gen 1 hub
- Switch between USB host sources
- Selectable 4K to 1080p downscaling for HDMI output
- Local powering and USB-C charging available with optional power supply
- Automatic input selection and automatic display control
