NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector

Free Shipping
(No reviews yet) Write a Review
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector
  • NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector


NEC NP-PE455WL Overview

Enjoy bright, clear images with the NEC NP-PE455WL 4500-Lumen WXGA Laser LCD Projector. Its 4500 lumens of brightness can overcome ambient light in most conference room and classroom settings, while its 450,000:1 dynamic contrast ratio can help ensure discernible detail in most images. The projector's native WXGA 1280 x 800 resolution is suitable for most video and file formats and will accept up to 4K UHD sources.

The NP-PE455WL has VGA and two HDMI inputs, plus an 1/8" analog audio input and built-in 16W speaker that will provide audio for your video. The 1.2 to 2.1:1 throw ratio and 1.7x zoom allow you to place the projector near the back of the room in most settings. It is controllable via Ethernet, RS-232, the included IR remote control, or various software options.

Key Features

  • Brightness of 4500 Lumens
  • WXGA (1280 x 800) Native Resolution
  • 1.2 to 2.1:1 Throw Ratio
  • VGA, 2x HDMI Inputs
  • Analog Audio Inout and Output
  • Integrated 16-Watt Speaker
  • Compatible with Various Control Systems
  • Ethernet and RS-232 Controllable
  • IR Remote Control Included

Virtually No Maintenance Required

  • The sealed LCD cooling system helps prevent dust from reaching the optics, eliminating the need for a filter
  • Laser technology provides light for up to 20,000 hours

Designed for Enhanced Performance

  • Outputs a low noise level of 27 dB to help reduce distractions
  • Images appear immediately after startup thanks to the laser light source
  • Brightness adjustment and constant brightness mode help maximize laser life and allow for a consistent looking image of time
  • Support for 4K/30 content
  • Integrated software support for Crestron RoomView, AMX Beacon, and PJ Link control systems

Engineered to Provide Installation Flexibility

  • Lens shift capability helps simplify alignment
  • Tilt-free (360° rotation) installation capabilities all for installation in nearly any environment, including portrait orientation (without black bars on the sides)
  • Horizontal & vertical keystone adjustment, along with cornerstone and pincushion adjustments, provide the ability to square the image to the screen

MultiPresenter Software

This application software lets you display your device's screen on the projector via your wired or wireless LAN. MultiPresenter is available for free on Windows, Mac, iOS, and Android platforms. It can send images from your devices, enabling you to display real time images with your device's camera or web pages, in combination with a file sharing application.

Networking Capabilities

  • Integrated RJ45 Ethernet connection for direct connection to your LAN (10/100 base-T capability)
  • Control and receive broadcast messages via Crestron RoomView
  • MultiPresenter enables up to 16 wireless devices to be connected to the projector simultaneously, with access controlled by the moderator
  • Remote diagnostics enable you to monitor and make adjustments to the projector remotely
  • Simple Access Point Sending of photos and documents from a computer or iPad are simplified

Additional Features

  • Advanced AccuBlend helps ensure detailed images when non-native resolution sources are used
  • AutoSense is designed to automatically sync with any computer signal and features one-touch image optimization
  • Discrete source keys for source selection
  • A built-in HTTP page allows for control and monitoring over your LAN; email notification of error messages or light source end-of-life can be sent to remote locations
  • Built-in wall color correction provides for adaptive color tone correction to display properly on non-white surfaces
  • The Carbon Savings Meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup; the green ECO Mode button on the remote control makes the switch easy
  • Direct Power Off protects the light source when the projector is accidentally unplugged or the power strip is switched off; it enables the fan to continue running until the light source is properly cooled down, and internal sensors monitor the light source temperature and prevent it from powering on
  • VGA and dual HDMI inputs enable quick switching between presentations
  • Dual HDMI inputs with HDCP also allows for simultaneous digital connection of HD sources, such as Blu-ray players, cable boxes, satellite receivers, and computers
  • Quick startup and power-off lets you start presenting within four seconds and allows immediate power off with no cooling required to help ensure efficient energy usage
  • USB Viewer permits playback of presentations or display images stored as JPG files from a USB flash drive
  • The variable audio out adjusts the volume of your external speaker system using the projector's remote control
  • Virtual Remote is used over the VGA cable to control the projector directly from a computer without additional control cables
  • The optional wireless LAN adapter lets you transmit images from a computer to the projector wirelessly, mitigating the need for extra cables
  • Optional NaViSet Administrator 2 software helps ease administration and management of large installations

NEC NP-PE455WL Specs

Image Display

Display System 0.64" Micro Lens Array (MLA) LCD
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Maximum: 4K UHD - 3840 x 2160 @ 30 Hz
Maximum Brightness 4500 Lumens
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 450,000:1
Scan Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz


Focus Manual
Lens f/1.7 - 2.2 (f = 17.4 - 29 mm)
Lens Shift Horizontal: ± 26%
Vertical: ± 55%
Optical Zoom Manual: 1.7x
Throw Distance 2.6 - 44.3' / 0.792 - 13.503 m
Throw Ratio 1.2 to 2.1:1
Projection Size 25 - 300" / 63.50 - 762.00 cm


Keystone Correction Horizontal: ± 30°
Vertical: ± 30°
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 16W
Projection Tilt Option Yes

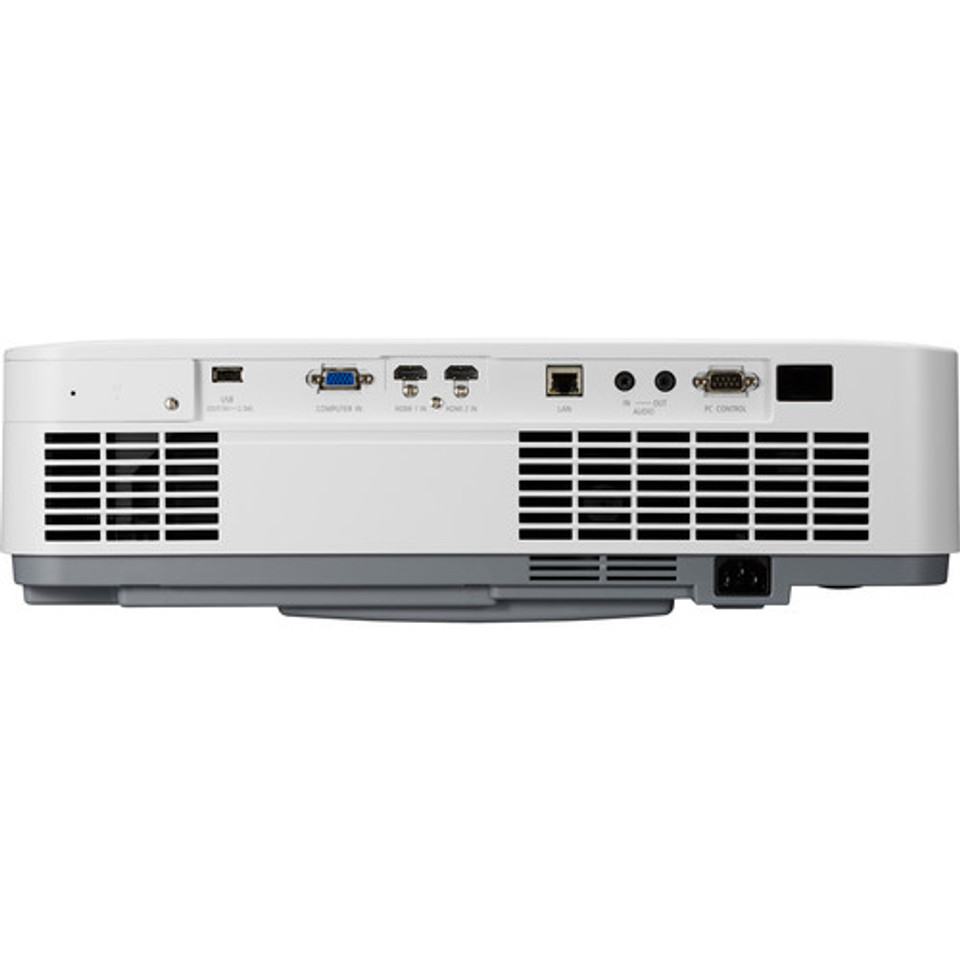

Input/Output Connectors

Inputs/Outputs 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) Control, LAN
1 x RS-232 (DE-9/DB-9) Control Input

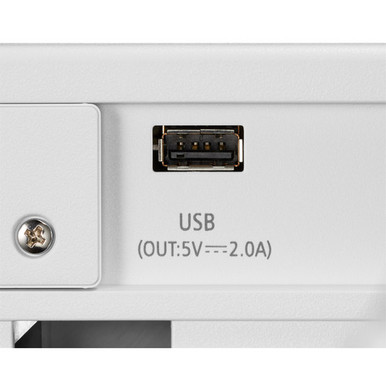

1 x USB 2.0 (USB Type-A) Data, Power
1 x USB 2.0 (USB Type-A) LAN Input
1 x USB 2.0 (USB Type-B) Service Input
Wireless LAN / Wi-Fi No, Optional Adapter Available


Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours
Fan Noise Full Brightness: 27 dB
Medium Brightness: 24 dB
Low Brightness: 22 dB
Supported Photo File Types JPG
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.8 to 4.5 A
Power Consumption Full Brightness: 279 W
Medium Brightness: 216 W
Low Brightness: 191 W
Standby Mode (Lamp Off): 1.6 W
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 122°F / -10 to 50°C
Operating Humidity 20 to 80%
Dimensions (W x H x D) 18.9 x 5.6 x 16.0" / 48.0 x 14.2 x 40.6 cm
Weight 20.7 lb / 9.39 kg

Packaging Info

Package Weight 27 lb
Box Dimensions (LxWxH) 23 x 19.5 x 10"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
