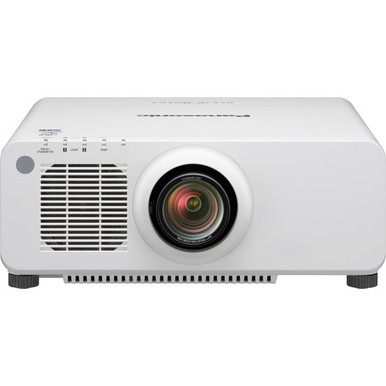

Panasonic PT-RW630LWU 6500-Lumen WXGA Laser Light Source DLP Projector (White)

Free Shipping
(No reviews yet) Write a Review
  • Panasonic PT-RW630LWU 6500-Lumen WXGA Laser Light Source DLP Projector (White)
  • Panasonic PT-RW630LWU 6500-Lumen WXGA Laser Light Source DLP Projector (White)


The white Panasonic PT-RW630LWU 6500-Lumen WXGA Laser Light Source DLP Projector is a lamp-free WXGA projector that utilizes a filter-less design for 20,000 hours or more of 24/7/365 continuous and maintenance-free operation. With no lamp to replace, these projectors are designed for a more stable light output over a longer period of time. Projectors with lamps to replace will go through more frequent cycles of brightness and dimming, while the laser technology will remain steady and brilliant during the same period. The laser engine is fashioned such that if anything were to go wrong with a single laser module, the projector would continue operation at up to 93% brightness. The laser light engine delivers a 10,000:1 contrast ratio with near pure white. The full power of the projector is used to make color without giving up some of the power to produce white for brightness.

It also offers an array of features, including edge blending, pixel mapping, horizontal / vertical / 360° rotational mounting, and geometry control. The laser light source combined with an onboard sensor enables accurate color and brightness control when blending two or more projectors over longer periods of time.

The PT-RW630LWU will work with many 1-chip DLP lenses available from Panasonic, including the ultra short-throw ET-DLE030 lens. It also has three standard digital inputs including HDMI, DVI, and Digital link. DIGITAL LINK is based on the HDBaseT spec for delivering 1080p audio and video content over 328' of Cat6e cable, while Panasonic adds its control protocol for complete integration with many control and networking products in the industry.

6,500-lumen laser light source 1-chip DLP
10,000:1 contrast ratio
Approximately 20,000 hours of continuous operation during normal use
Lamp-free design allows for 24/7/365 continuous, maintenance-free operation
Supports custom applications such as edge blending, pixel mapping, and projection on curved surfaces from any mounting position (vertical, horizontal and / or tilting 360 degree projection)
Detail Clarity Processor gives clarity to fine details
System Daylight View enhances color perception, reducing the need to turn off the lights
Full 10-bit signal processing
Cooling system designed to maintain quiet, long-term, stable operation while keeping the exhaust heat low
Filter-less, dust-resistant structure with an airtight optical block to resist the effects of dust and other particles in the air
Multi-screen support system seamlessly connects multiple screens
Multi-unit brightness control function
Lens-centered design
Omnidirectional installation capability
DIGITAL LINK allows transmission of digital signals (HDMI, uncompressed HD video, and control signals) up to 328' with a single Cat5e cable or higher
The optional ET-YFB100G Digital Interface Box makes setup easy for ceiling-mounted and other permanent installations
Art-Net compatibility simplifies system integration
DVI-D and HDMI inputs
Multi Projector Monitoring and Control Software allow multiple projectors to be managed together over a wired LAN
Web browser control
Optional Early Warning Software ET-SWA100 Series compatible
Shutter function with fade in/out effect; processing time controllable between 0 and 10 second
PJLink compatible
Picture-in-picture function
Scheduling function
Optional ET-MWP100G Multi Window Processor for multi-screen solution
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
