Christie WU12K-M Overview

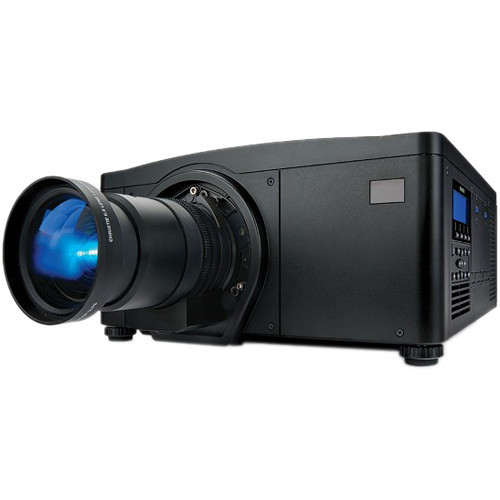

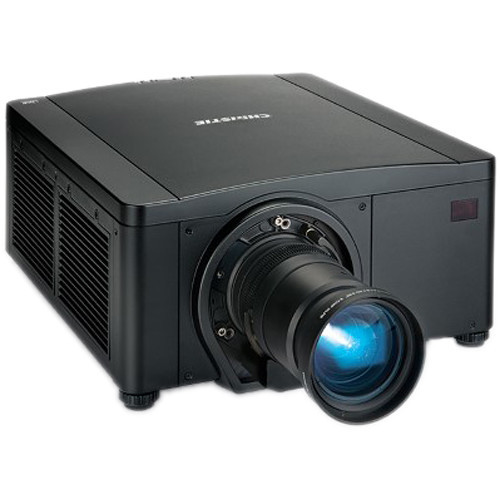

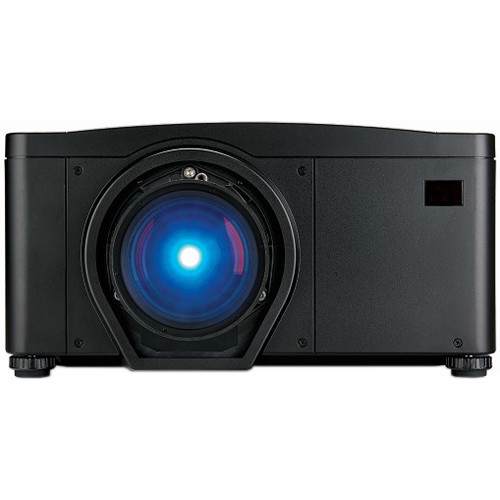

The M Series WU12K-M WUXGA 3DLP Projector from Christie offers embedded warping, blending, and color matching. It features a dual lamp design, and when using both lamps provides 11,500 center lumens for maximum brightness. WU12K-M supports maximum resolution of 1920 x 1200, and a contrast ratio of 10,000:1.
Intelligent Lens System (ILS)
The ILS automatically recognizes and calibrates a lens when it is installed. Stepper motor-based encoding ensures that motor drift does not occur, providing accurate and repeatable recall of all lens offset, zoom and focus positions. This lens system ensures that the images adjust to optimize screen coverage and maintain alignment in applications with moving screens or variable aspect ratios.
Multi Window/Screen Processing
External processors are not required for simple, small tiled, and blended arrays. This reduces TCO. Each M Series projector has the ability to send signals to multiple projectors (up to a 3x3 array) without any additional hardware or software. The projectors in the tiled array can then show only the portion of the signal that they need to project.
Embedded Christie Twist
Christie Twist enables seamless edge-blending of multiple curved images faster and easier than traditional, manual methods. Controlled by an intuitive GUI, users can control and edgeblend or stack multiple curved images. Images can also be warped to fit virtually any dimension or shape display. Embedded Christie Twist ensures that all M Series projectors work with optional accessories such as Christie AutoStack and AutoStack Premium, camera-based software used to easily and accurately align content across a projection array in minutes.
Embedded Edge Blending and Color Matching
Advanced blending capabilities and Comprehensive Color Adjustment (CCA) ensure digitally accurate color matching and uniformity across multi-screen blended or tiled images.
LiteLOC
The LiteLOC feature automatically manages your display's brightness levels over time so that you can match the brightness of a multiple projector system in tiled or blended arrays. This feedback system continuously monitors lamp brightness, so that as the lamp goes through its natural brightness decay, the system increases the lamp power in order to maintain consistent brightness.
Projector Control and Management

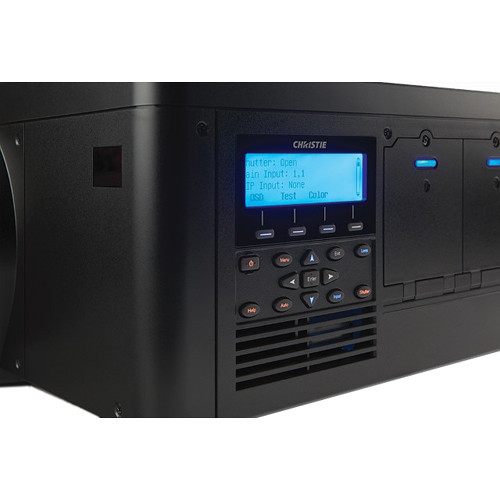

Users can access all projector menus and control through a web interface (via Ethernet) without disrupting the live presentation. This allows for real-time adjustments and monitoring of each projector on the network, regardless of geographic location.
Christie WU12K-M Specs
Image Display
| Display System | 3-Chip 0.96" DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 Maximum: QXGA - 2048 x 1536 |
| Maximum Brightness | 11,500 Lumens |
| Uniformity | 90% |
| Offset | 112% ± vertical 54% ± horizontal |
| Contrast Ratio | 650:1 |
| Dynamic Contrast Ratio | 10,000:1 |
| Scan | Horizontal: 15 to 120 kHz Vertical: 23.97 to 150 Hz |
| Optical Zoom | None |
Features
| Keystone Correction | None |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | None |
| Built-In Speaker | None |
| Projection Tilt Option | No |
Input/Output Connectors
| Inputs/Outputs | 2 x DisplayPort Video Input 2 x DisplayPort Video Output 1 x DVI-D Video Input 1 x 3G-SDI (BNC) Video 1 x VGA (DE-15/DB-15) Video 1 x RS-232 (DE-9/DB-9) Control Input/Output 1 x RS-232 (DE-9/DB-9) Control 1 x RS-422 (DE-9/DB-9) Control Input 1 x Ethernet (RJ45) LAN 1 x USB Type-A Data |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Lamp Power | 350 W |
| Expected Lamp Life | Full Brightness: 1500 Hours Low Brightness: 2000 Hours |
| Security | None |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation | 4508 BTU |
| Power Consumption | Medium Brightness: 1320 W |
| Dimensions (W x H x D) | 22.1 x 19.7 x 10.2" / 56.1 x 50.0 x 25.9 cm |
| Weight | 55.00 lb / 24.95 kg without lens |
1 Year Parts & Labor Manufacture Warranty
