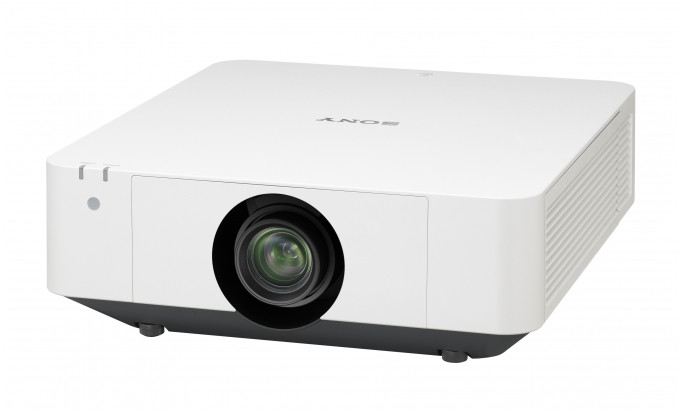

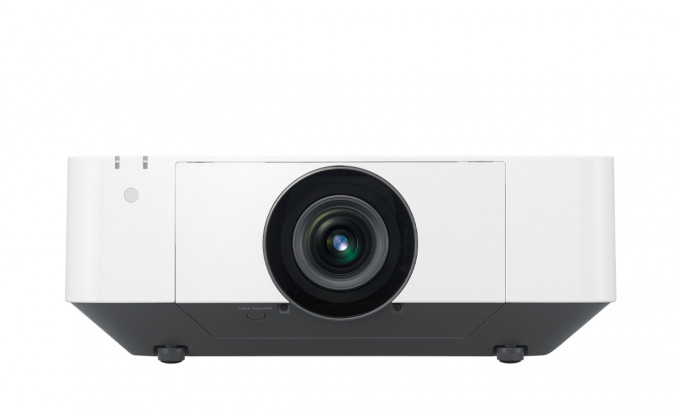

VPL-FHZ57 - 4,100 Lumens Wuxga Laser Light Source Projector - SONY

Retail: $7,000.00
— You save $4,010.00
Free Shipping
(No reviews yet) Write a Review
In stock, ship same-day or until 48 Hrs
  • VPL-FHZ57 - 4,100 Lumens Wuxga Laser Light Source Projector  - SONY
  • VPL-FHZ57 - 4,100 Lumens Wuxga Laser Light Source Projector  - SONY
  • VPL-FHZ57 - 4,100 Lumens Wuxga Laser Light Source Projector  - SONY
  • VPL-FHZ57 - 4,100 Lumens Wuxga Laser Light Source Projector  - SONY


The VPL-FHZ57 laser projector is ideal for a wide range of business, education, and entertainment applications. Teamed with our BrightEra 3LCD projection engine, the advanced Z-Phosphor laser light source ensures detail-packed WUXGA resolution images with a generous 4,100 lumens of brightness, and rich, stable colors. Building on the success of Sony's acclaimed first-generation laser projectors, advanced picture refinement technologies now assure even greater clarity and realism with any input source.

The laser light source allows up to 20,000 hours* of virtually zero-maintenance operation without the worry of sudden lamp failures. Constant Brightness Mode maintains the same on-screen light levels throughout the laser source's extra-long lifespan. An automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving features, driving down total lifetime ownership costs even further.

With a stylish blend-in design, tidy cable management, and ultra-low fan noise, the VPL-FHZ57 fits beautifully into almost any environment from academic institutions, corporate, medical training, and public sector organizations to visitor attractions and retail spaces. Seamlessly blend images from multiple projectors to create super-sized displays, or accurately project proportioned images onto angled or curved surfaces. Mount the projector at any angle, even on its side or upside down. Setup is refreshingly easy with a friendly installation menu.

The Z-Phosphor laser light source is coupled with Sony's acclaimed BrightEra 3LCD projection engine to ensure high 4,100 lumen image brightness with vivid, natural color reproduction.

Picture quality is boosted by advanced processing featured on Sony home cinema projectors. Reality Creation uses a powerful pattern-matching database to optimize every pixel. Contrast Enhancer actively analyzes and refines dark and light image areas for sparkling highlights and rich, deep blacks.
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
View AllClose

Additional Information

Display system:
3 LCD system
Display device:
0.76��� (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels:
6,912,000 (1920 x 1200 x 3) pixels
Projection lens *1:
Zoom - Powered/Manual:
Light source:
Laser diode
Filter cleaning / replacement cycle (Max.) *2:
20000 H (service maintenance)
Screen size:
40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)
Light output *3:
6,100 lm*4
Mode: Standard (Center):
6,700 lm*5
Color light output *3:
6,100 lm
Mode: Middle:
Contrast ratio (full white / full black) *3:
Displayable scanning frequency:
15 kHz to 92 kHz
48 Hz to 92 Hz
Accepted signal resolution:
Maximum signal resolution: 1920 x 1200 *6
Video signal input:
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for digital signal (HDMI input) only
Color system:
Keystone correction (Max.):
=+/- 30 degrees
=+/- 30 degrees
INPUT OUTPUT (Computer/Video/Control):
RGB / Y PB PR input connector:Mini D-sub 15 pin (female) Audio input connector: Stereo mini jack
DVI input connector: DVI-D 24-pin (single link), HDCP support Audio input connector: Shared with INPUT A
Acoustic Noise *3:
28 dB
Operating temperature / Operating humidity:
0��C to 40��C (32��F to 104��F) / 20% to 80% (no condensation)
Storage temperature / Storage humidity:
-10��C to +60��C (14��F to +140��F) / 20% to 80% (no condensation)
Power requirements:
AC 100 V to 240 V, 5.5 A to 2.3 A, 50 Hz / 60 Hz
Power consumption:
Mode: Standard: 515 W
AC 220 V to 240 V:
Mode: Standard: 497 W
Power Consumption (Standby Mode):
0.5W (when ���Standby mode��� is set to ���Low���)
AC 220 V to 240 V:
0.5W (when ���Standby mode��� is set to ���Low���)
Power Consumption (Networked Standby Mode):
15.0 W (LAN) 19.4 W (HDBaseT) 19.4 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
AC 220 V to 240 V:
13.3 W (LAN) 17.4 W (HDBaseT) 17.4 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated:
Approx. 10 Minutes
Heat dissipation:
1757 BTU/h
AC 220 V to 240 V:
1696 BTU/h
Dimensions (W x H x D):
460 x 169 x 515 mm 18 1/8 x 6 21/32 x 20 9/32 inches
16 kg (34 lb)
Supplied accessories:
Optional accessories:
VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032
With supplied standard lens
This figure is expected maintenance time, not guaranteed time. The actual value depends on the environment and how the projector is used.
