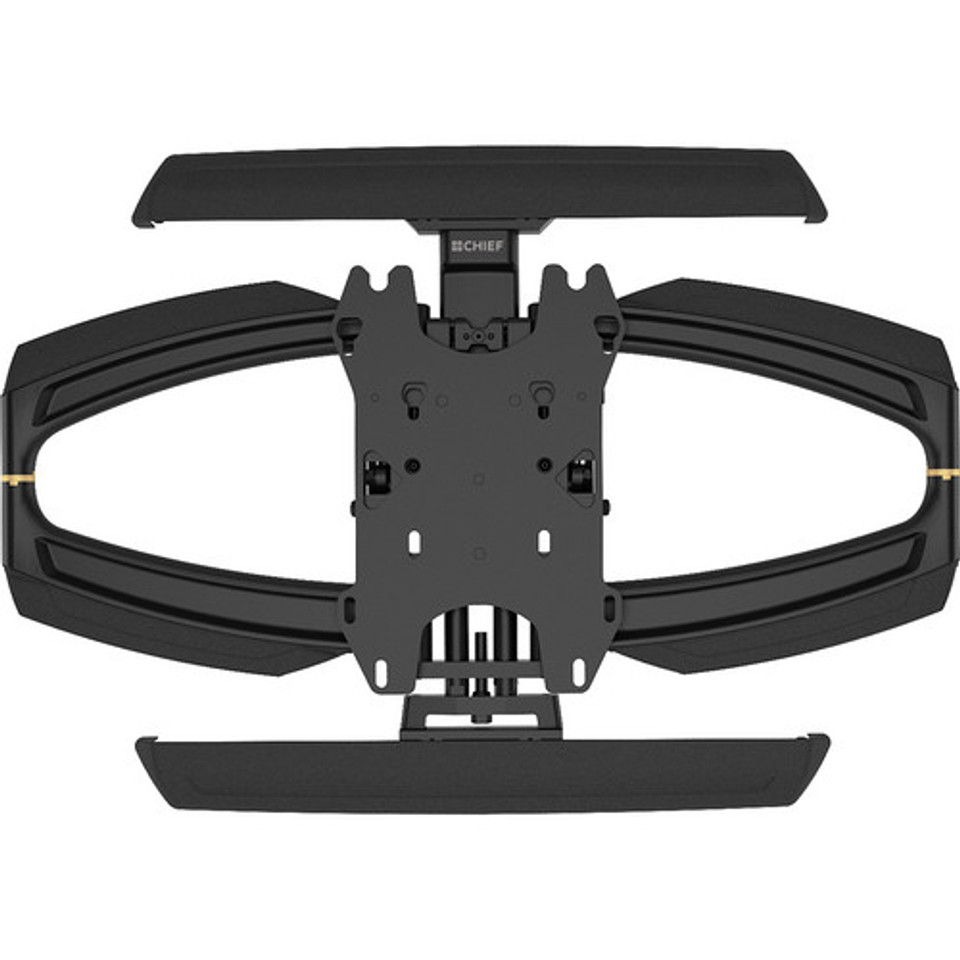

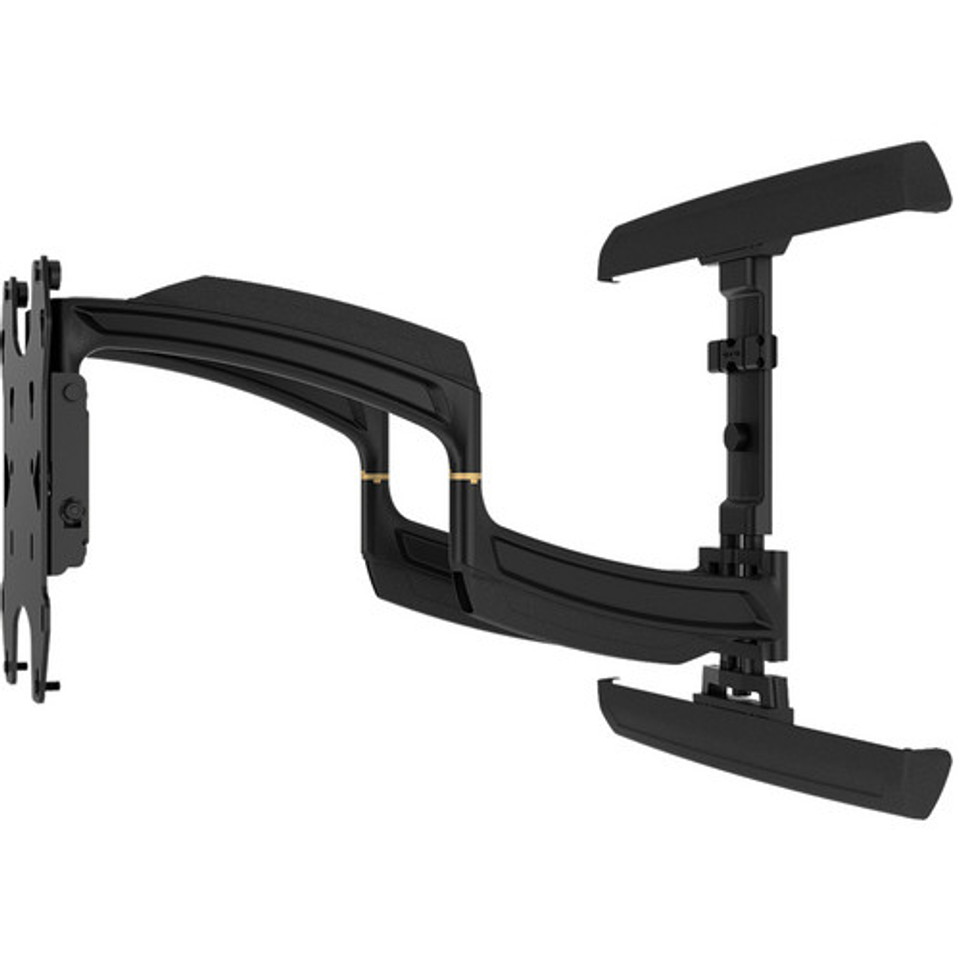

Chief TS525TU Large Thinstall Dual-Swing-Arm Wall Mount

The Chief TS525TU Large THINSTALL Dual-Swing-Arm Wall Mount is a premium-grade mounting solution designed for large flat panel displays in professional AV environments. Engineered to deliver full motion with an ultra-thin profile, this mount extends up to 25 inches from the wall while retracting to just 2.3 inches, enabling low-profile installations without sacrificing accessibility or flexibility. The dual-swing-arm design provides smooth tilt, swivel, and lateral shift for optimal screen positioning in conference rooms, control centers, retail displays, and other commercial applications. Compatible with displays from 42" to 75" and up to 125 lbs (56.7 kg), the TS525TU offers universal interface support with a wide range of VESA mounting patterns. Built-in cable management keeps AV and power cables securely organized, while post-installation adjustments allow for precise screen alignment. This mount is constructed from robust materials, finished in black, and supports wood studs, concrete, and metal stud walls with appropriate accessories.

Product Features

• Display Compatibility: 42"–75" screens

• Extension Range: Up to 25" (635 mm)

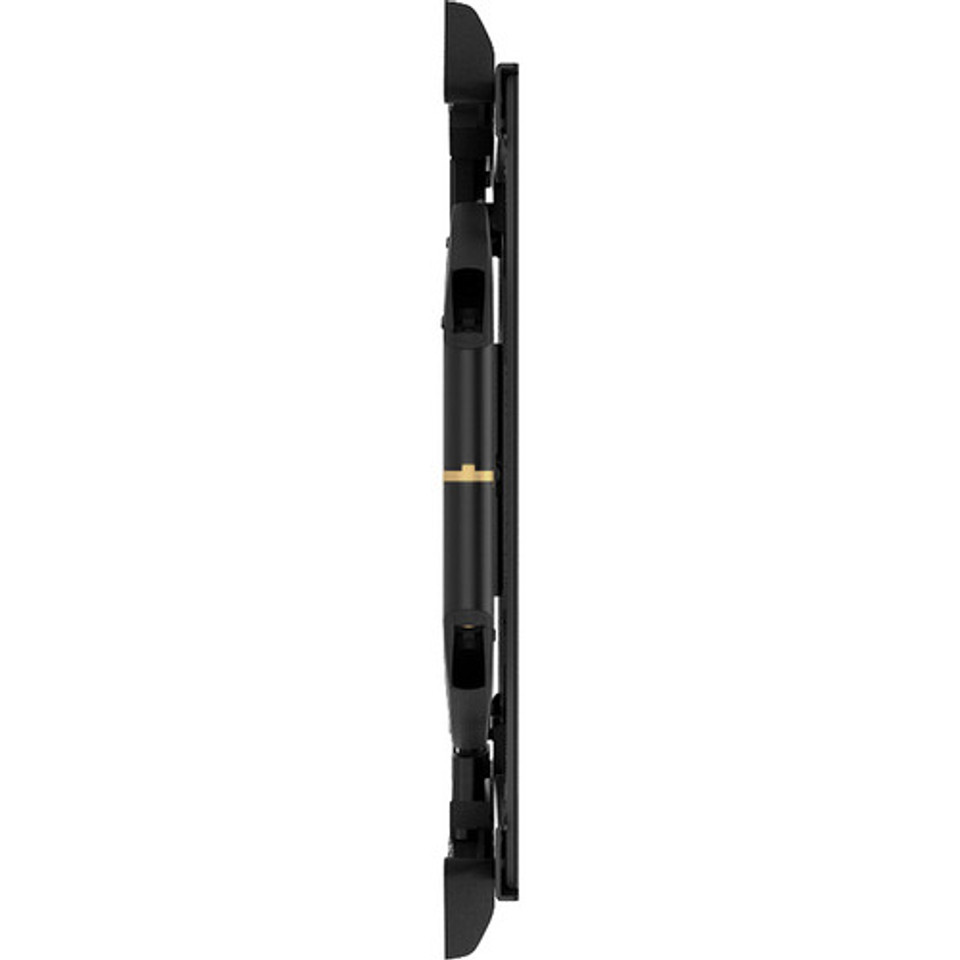

• Retracted Depth: 2.3" (58 mm)

• Weight Capacity: Up to 125 lbs (56.7 kg)

• Mount Type: Dual-swing-arm wall mount

• Tilt Range: -15° to +15°

• Swivel Range: ±90°, depending on screen size

• Post-Install Adjustment: ±0.75° level adjustment

• VESA Compatibility: 200 x 200 mm to 600 x 400 mm

• Material: Heavy-duty steel construction

• Finish: Black

• Cable Management: Integrated cable routing

• Installation Compatibility: Wood studs, concrete, and metal studs with optional hardware

Highlights

• The TS525TU extends up to 25 inches from the wall and retracts to just 2.3 inches, offering both full-motion versatility and a near-wall low-profile appearance ideal for commercial or corporate AV installations.

• Designed to support large flat panel displays from 42 to 75 inches and up to 125 pounds, the mount’s universal interface ensures broad compatibility with a wide range of VESA patterns commonly used in professional displays.

• Dual swing arms offer smooth articulation with generous swivel and tilt adjustments, enabling precise viewing angle customization in dynamic spaces such as control rooms, conference centers, or retail signage setups.

• Integrated cable management channels maintain clean and secure cable routing throughout the arms, supporting both professional aesthetics and long-term reliability of AV signal and power connections.

• Allows for fine-tuned screen alignment through post-installation height and level adjustment, minimizing the need to reposition the mount and reducing setup time for AV technicians and installers.
