Product Overview

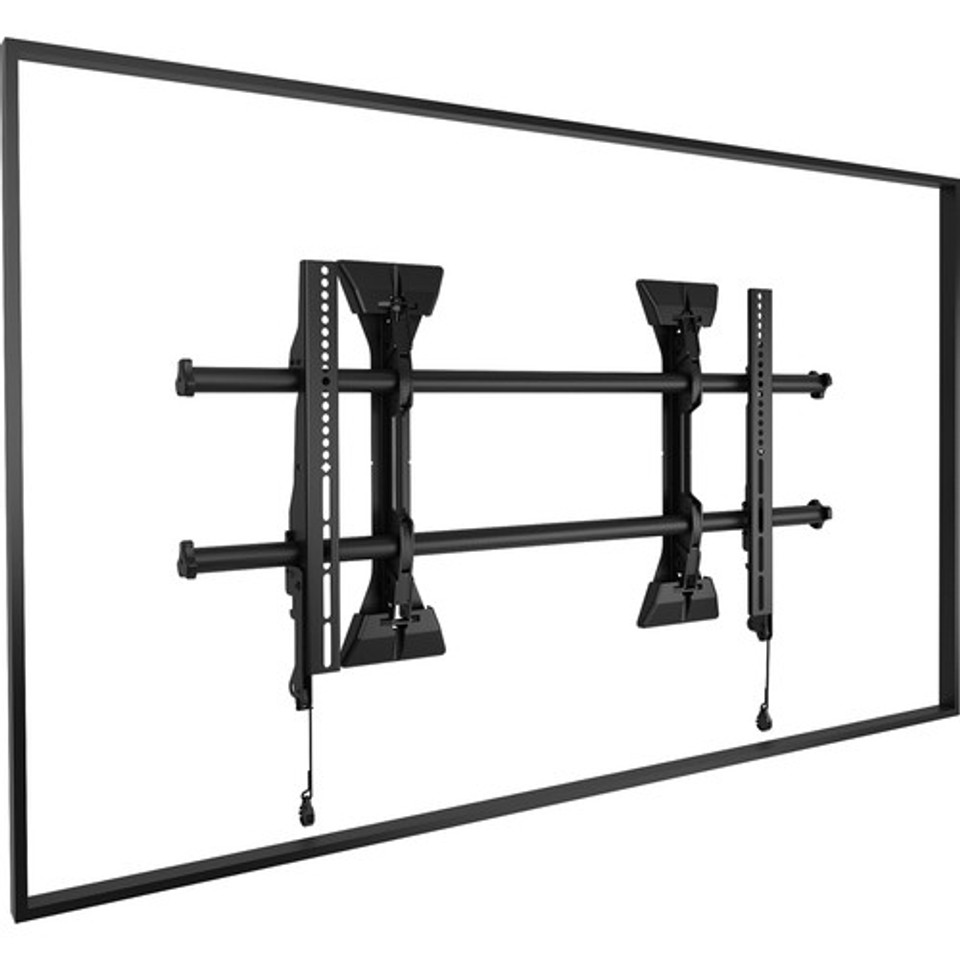

The Chief LSM1U Fusion Series Fixed Wall Mount will support TVs and monitors with a screen size of 42 to 86" and up to 200 lb, while offering the option of post-installation lateral shift up to 17.4" and height and level adjustment. It features a built-in kickstand for easy access behind the screen. The LSM1U has ClickConnect, which provides an audible click when the screen is safely engaged with the mount.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4" of post-installation lateral shift for near limitless centering
- Set screws keep the mount rigid, stable, and secure throughout the life of the installation
- A full line of accessories can be installed with the mount, and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Included nesting spacers can be stacked to achieve virtually any depth from display to wall
- Quick-store cords use magnets to easily store and access pull cords
- Integrated padlock shackle for adding a lock, up to 5/16" in diameter
- Easy-to-open box with less waste to throw away
Chief LSMSpecs
| Compatible Models | |
| Mounting-Hole Pattern | |
| Load Capacity | |
| Mounting Compatibility | |
| Adjustments | |
| Orientation | |
| Security | |
| Distance from Mounting Surface | |
| Certifications | |
| Dimensions |
| Package Weight | |
| Box Dimensions (LxWxH) |
Key Features
-
Fixed Wall Mount for Large Displays: Designed for 42" to 86" screens, the LSM1U provides stable and secure wall mounting with a low-profile design ideal for high-traffic or commercial spaces.
-
Post-Installation Adjustments for Precision Alignment: Offers height, leveling, and lateral shift adjustments even after the display is mounted, ensuring precise positioning without reinstallation.
-
Fusion Series Engineering for Simplified Installation: Built-in features such as tool-free latching and cable routing streamline the setup process and enhance the overall appearance of installed displays.
-
High Load Capacity and Durable Build: Supports displays up to 200 lbs with a steel construction that ensures strength and long-term performance in demanding AV environments.
-
Professional Aesthetic with Clean Cable Management: Integrated cable channels conceal and protect cables, maintaining a tidy installation suitable for boardrooms, lobbies, and signage walls.
Chief LSM1U is a fixed wall mount supporting 42" to 86" displays, offering a secure and stable mounting solution for commercial and professional AV applications.
The mount’s post-installation adjustments allow precise display positioning with height, lateral, and leveling capabilities to streamline setup and alignment.
A low-profile design keeps the display close to the wall, making it suitable for environments where space-saving and a clean look are priorities.
Built with steel construction, the LSM1U supports up to 200 lbs and provides long-lasting durability for use in classrooms, conference rooms, and signage installations.
Integrated cable management and the ClickConnect™ tool-free latching system ensure an organized appearance and fast, secure installation of compatible displays.
