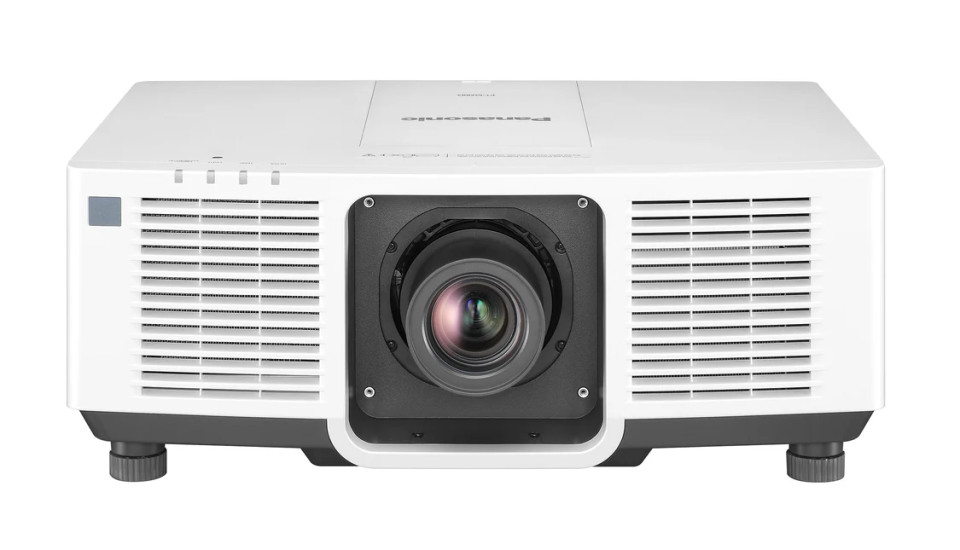

Name: Panasonic PT-MZ682W 6500 Lumen WUXGA Laser 3LCD Projector (White)
Brand: Panasonic
SKU: PT-MZ682WU7
Price: 5329.95 USD
Availability: OutOfStock

Panasonic PT-MZ682W 6500 Lumen WUXGA Laser 3LCD Projector (White)

(0 review)

8 sold in last 24h

Product code: PT-MZ682WU7

UPC: 885170430778

Shipping: Free Shipping

$5,329.95

Panasonic PT-MZ682 Specs Display System 3-Chip 0.76" LCD Native Resolution 1920 x 1200 Maximum Brightness 6500 Lumens (ISO) Throw Ratio 1.…

Description

Description

Panasonic PT-MZ682 Specs

Display System	3-Chip 0.76" LCD
Native Resolution	1920 x 1200
Maximum Brightness	6500 Lumens (ISO)
Throw Ratio	1.61 to 2.76:1 (150" Screen Size @ 23' / 7.0 m)
Projection Size	40 to 400" / 1.0 to 10.2 m
HDR Support	Yes
Inputs/Outputs	3x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x 1/8" / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output 1x RJ45 (Ethernet) LAN Input
Light Source	Laser Phosphor

Image Display

Display System	3-Chip 0.76" LCD
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness	6500 Lumens (ISO)
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3
Dynamic Contrast Ratio	3,000,000:1

Lens

Includes Lens	Yes
Focus	Manual Powered
Aperture	f/1.7 to 2.3
Focal Length	26.8 to 45.5mm
Lens Shift	Vertical: ± 67% Horizontal: ± 35%
Optical Zoom	Powered: 1.7x
Throw Distance	4.58 to 78' / 1.4 to 23.8 m
Throw Ratio	1.61 to 2.76:1 (150" Screen Size @ 23' / 7.0 m)
Projection Size	40 to 400" / 1.0 to 10.2 m

Features

Keystone Correction	Manual to Vertical: ± 25° Manual to Horizontal: ± 30°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Input/Output Connectors

Inputs/Outputs	3x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8" / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x 1/8" / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output 1x RJ45 (Ethernet) LAN Input
HDCP Support	Yes, Version 2.3
Media/Memory Card Slot	No

Hardware

Mobile App Compatible	Yes: Android & iOS App Name: Smart Projector Control Functionality: Adjust Settings, Setup
Wireless LAN / Wi-Fi	No
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 34 dB
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 360 W
Operating Conditions	32 to 113°F / 0 to 45°C at 20 to 80% Humidity
Dimensions (W x H x D)	22.0 x 8.8 x 17.3" / 560.0 x 224.0 x 439.0 mm (Including Lens and Protruding Parts, with Legs at Shortest Position)
Weight	41 lb / 18.6 kg
