Panasonic PT-DZ21K2U Overview
The PT-DZ21K2U 3D WUXGA Large Venue 3-Chip DLP Projector from Panasonic has a resolution of 1920 x 1200 with 20,000 lumens of brightness, and features long lamp replacement cycles of up to 3,000 hours. These features make this projector great for large venue applications. Its real motion processor combines frame-creation and 120 Hz processing for fluid motion reproduction. The clarity processor delivers crisp and detailed image quality, providing a 10,000:1 contrast ratio with Dynamic Iris. This projector offers System Daylight View 3 for enhanced color performance in bright rooms and mapping applications, a Waveform Monitor function that allows for easy adjustment of black and white levels, and DICOM Simulation Mode for medical presentations and training. Additionally, it provides a liquid cooling system and highly efficient quad-lamp setup to reduce operational noise.
- Active 3D projection capability
- Quad-lamp system allows 24/7 operation in lamp relay mode

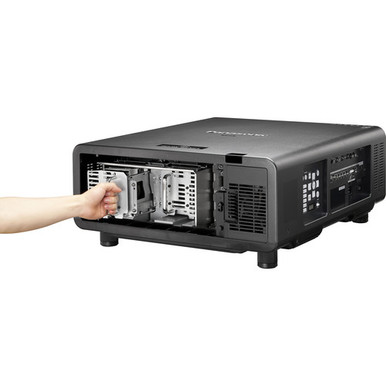

- Easy lamp replacement from rear side
- Eco filter requires no maintenance for 12,000 hours
- Durable, precision-tuned optical engine
- High-efficiency lamps reduce power consumption
- Flexible installation with 360° vertical cabinet rotation
- Multi-screen support seamlessly joins screens with edge blending, color matching, and multi-screen processing
- Geometric adjustment for projection on curved or spherical surfaces
- Multi-unit brightness control
- Single-cable Digital Link connection transmits video and control signals up to 328 ft
Panasonic PT-DZ21K2U Specs
Image Display
| Display System | 3-Chip 0.96" DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 20,000 Lumens |
| Uniformity | 90% |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 10000:1 |
| DLP Link 3D | Yes |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 15° |
| Inputs/Outputs | 1 x Component (3BNC) Video Input 1 x 24-Pin Universal Port Video Input 1 x Ethernet (RJ45) LAN Input |
General
| Light Source | Lamp (4 x UHM) |
| Lamp Power | 465 W |
| Expected Lamp Life | Medium Brightness: 3000 Hours |
| AC Input Power | 240 VAC, 50 Hz |
| Power Consumption | Medium Brightness: 2300 W Standby Mode (Lamp Off): 4 W Standby Mode (Lamp Off): 0.3 W |
| Dimensions (W x H x D) | 24.4 x 10.0 x 28.7" / 620.0 x 255.0 x 730.0 mm without lens |
| Weight | 94.80 lb / 43 kg without lens |
