Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH7F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
ULTRA HD Resolution
Ultra HD resolution is 4 times higher than FHD and it makes the color and details of content vivid and realistic. In addition, the IPS panel offers a wide viewing angle and clear content.

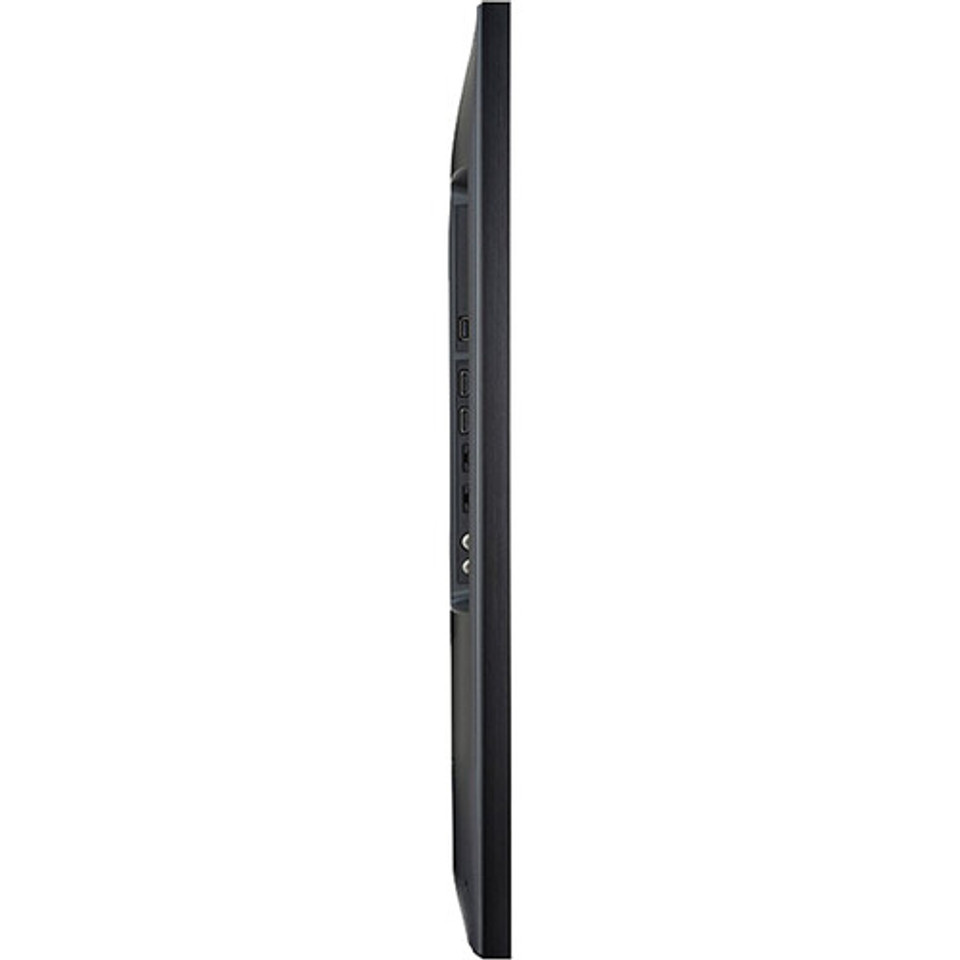

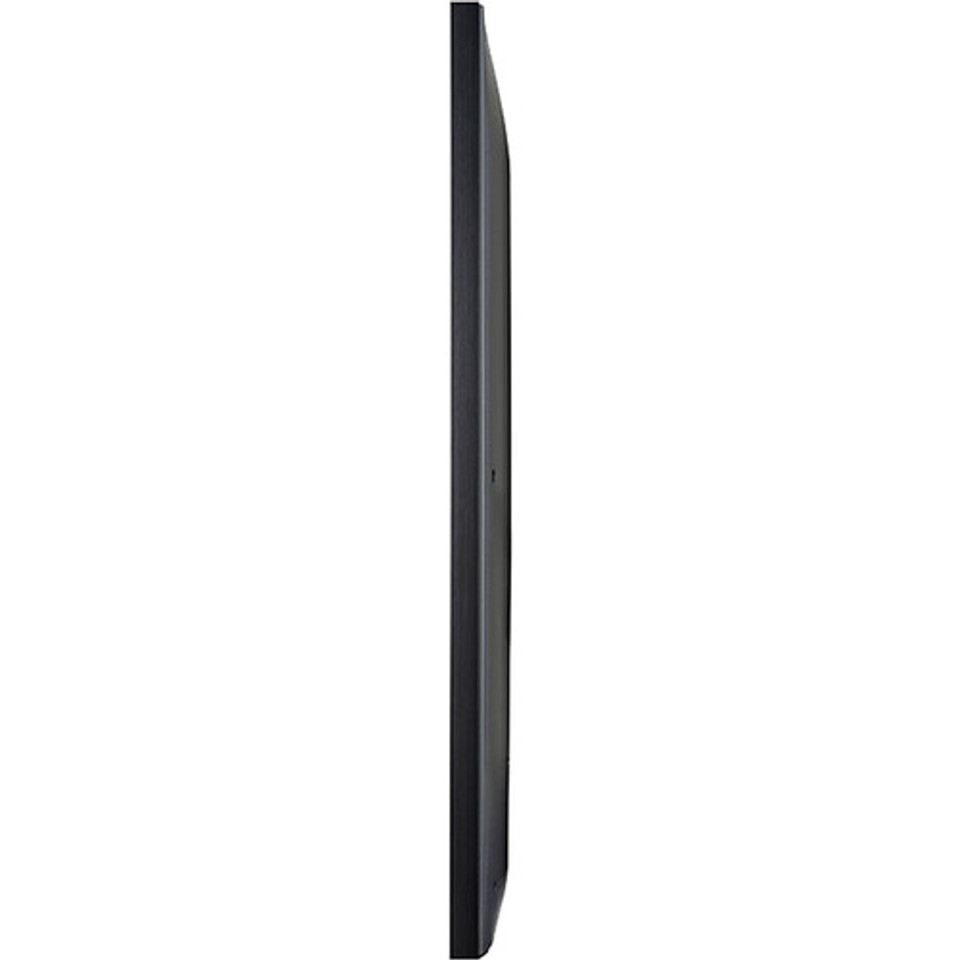

Narrow Bezel & Slim Depth
The UH5F-H series digital signage has a thin bezel size and thickness. It helps create an immersive experience while providing a sophisticated design that can help improve the décor of the space where the product is installed.
Detachable Logo and Built-in Speaker
49UH7F-H is equipped with a new transparent logo that is detachable giving the user flexibility for installation. Content is enriched with sound effects from built-in speakers.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
30° Tilting Installation
When installed in high places the UH7F-H series supports the installation of 30 degrees of tilt. making it easier for customers to see.
Auto Screen Rotation
49UH7F-H automatically detects its orientation (landscape or portrait mode) in the initial installation step. The direction of onscreen menu and background content will be set when you turn on a display.
Fine Adjustment
The UH7F-H series is equipped with a "horizontal sensor" which shows users how the device is oriented, to aid in installation.
High-Performance with webOS
The 49UH7F-H has a built-in Quad Core System on a Chip (SoC) and can execute several tasks at once while providing smooth content playback. The LG webOS™ platform has an intuitive Graphic User Interface (GUI) and simple app development tools.
Various Sensor Connection
LG webOS™ smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. There is no need to purchase additional software or media players.
Compatible with AV Control System
The UH7F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
Compatible with Video Conference System
The UH7F-H series has certified its compatibility with Cisco System, which offers powerful and integrated control for a smart video conference.
- 700 nits Brightness (Typ.)
- Surface Treatment (Haze) : 28%
- Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
- 30° Tilting, Detachable Logo, Built-in Speakers
- WebOS™ Smart Signage Platform
- Cisco System & Crestron Connected® Compatible
SPECIFICATIONS
General Information | |
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 49UH7F-H |
| Product Series | UH7F-H |
| Product Model | 49UH7F-H |
| Product Name | 49UH7F-H Digital Signage Display |
| Product Type | Digital Signage Display |
Technical Information | |
| Bezel Width (Bottom) | 0.57" |
| Bezel Width (Top) | 0.39" |
| Bezel Width (Left) | 0.39" |
| Bezel Width (Right) | 0.39" |
Memory | |
| Standard Memory | 8 GB |
Display & Graphics | |
| Screen Size | 49" |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| Backlight Technology | Edge LED |
Video | |
| Scan Format | 2160p |
| Dynamic Contrast Ratio | 500,000:1 |
| Color Depth | 10-bit |
| Brightness | 700 Nit |
| Color Gamut | 95% BT.709 |
Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 1 |
Software | |
| Operating System | webOS 4.1 |
Power Description | |
| Input Voltage | 120 V AC |
|
| 230 V AC |
Physical Characteristics | |
| Color | Black |
| VESA Mount Standard | 300 x 300 |
| Mount Type | Wall Mountable |
Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | CEC |
|
| ENERGY STAR 8.0 |
|
| ErP |
Warranty | |
| Limited Warranty | 3 Year |
