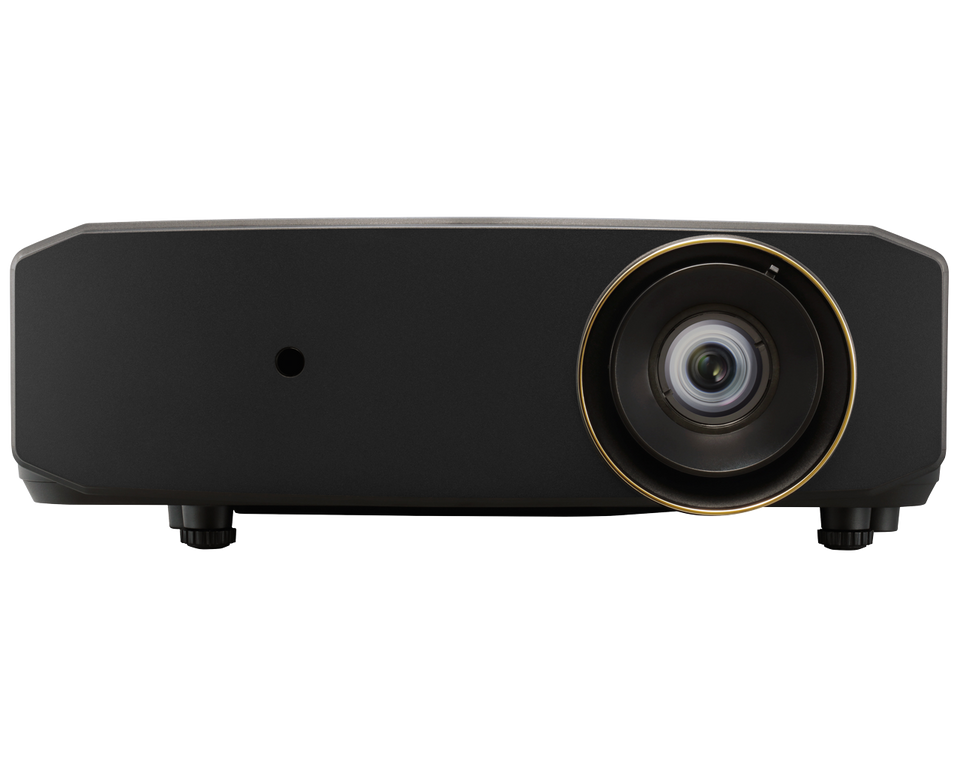

The LX-NZ30 is a high-performance 4K UHD/HDR home theater projector with laser light source technology BLU-Escent. With 3,300 lumens of brightness this projector is ideal for a variety of theater environments. With the laser light source in high power mode you will get up to 20,000 hours of viewing. The low latency in combination with the 1080p/240Hz input takes gaming on this projector to another level.
- 4K resolution (3840 x 2160) and HDR (HDR10/HLG) compatible.
- Low Latency and 1080p/240Hz input especially for next level gaming
- 4K input specs: Supports 4K60p/50p 4:4:4/8bit 4:2:2/12bit and 4K30p/25p/24p 4:4:4/12bit signals
- Connectors: Display Port in, HDMI x2 with HDCP 2.3 support, USB Type C, USB Type A (1.5 A power supply), and RS-232, LAN and Trigger (12 V)
- "BLU-Escent" Laser Light Source
- 3,300 lumens brightness and 20,000-hour long life
- ∞:1 Contrast with Dynamic Laser Dimming
- Lens: 1.6X Wide Zoom (1.36:1 - 2.18:1)
- Wide lens shift function: +/-60% vertical, +/-23% horizontal
- Second Generation .47" XPR DMD Technology for bright 4K images
- Available in 2 colors (black and white)
Specifications
Device
DLP Technology Yes
Chip Type 0.47" DMD
Number Of Chips 1
Display Resolution 3840 x 2160
4K UHD Yes
Light Source
Laser Yes
Type BLU-Escent Laser
Life Time (Standard Mode) 20000 hours
Brightness 3300 lm
Dynamic Light Power control Yes, 2 Modes
Manual Light Power control Yes
100% REC 709 Yes
HDR
HDR10 Yes
HLG Yes
Auto Tone Mapping Yes
Mastering Info Display Yes
HDR Picture Modes HDR10 / HLG
Lens
Zoom 1.6 x
f 14.3 - 22.9mm
F 1.809
Lens Shift Yes
Range Horizontal ± 23 %
Range Vertical ± 60 %
Projection Display size (diagonal) 60 - 200 inch
HDMI
HDMI Yes
Version 2.0
Number of Inputs 2
HDCP Version 2.3
4K60P signal input Yes
2K240p signal input Yes
Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 240/120/ 60/ 50/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / UXGA / WQHD (60) / FHD (240) / UHD (60)
Input Level Adjustment Auto / Normal (16-235) / Enhanced (0-255)
Connections
Display Port Yes
Trigger out Yes
Power DC 12V / 100mA
LAN Yes
Connector RJ45
USB Yes
Connector 1 x USB type C input (DP Alt mode support), 1x USB type A output (5V/1.5A)
RS-232 Yes
Connector D-sub 9-pin
Picture Settings
Picture Modes Natural. Cinema, Dynamic, User 1 & 2
Color Temperatures High, Normal, Low
Gamma Adjust 2.2, 1.8, 2.0, 2.1, 2.3, 2.4, 2.6, Contrast Priority, Brightness Priority
Color Management 3D Color Management
Low Latency Mode Yes
Power & Environment
Power Requirement AC100-240V, 50/60Hz
Power Consumption 360W
Standby 0,5W
Fan Noise 34 dB
Eco Mode Yes, 29dB
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 90%
In the box

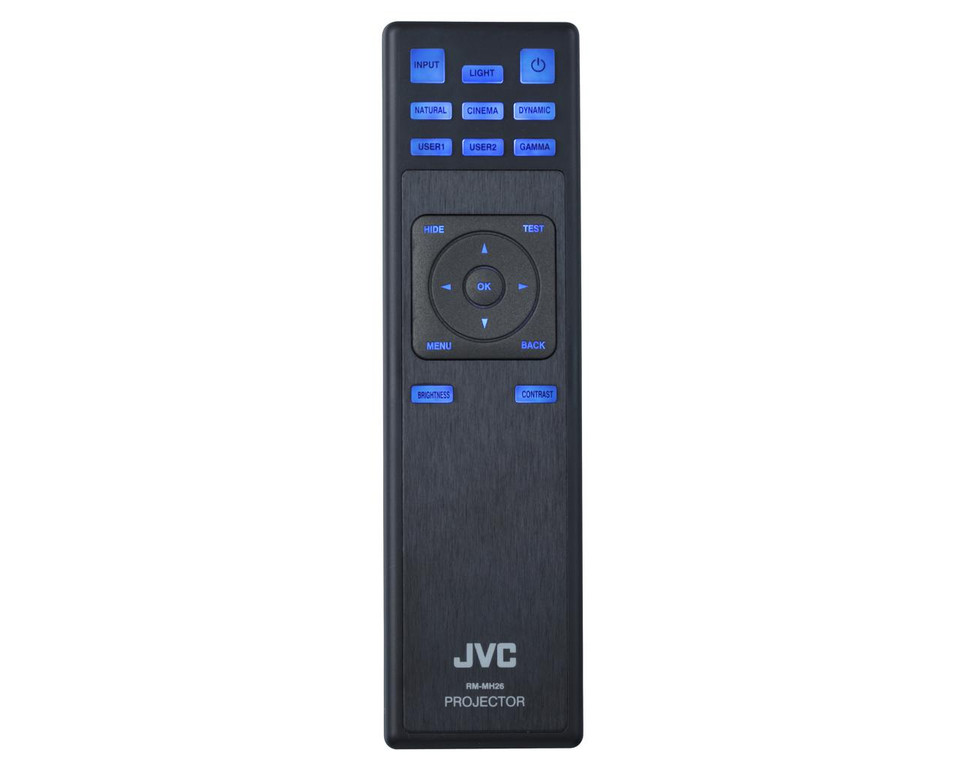

Remote Control Yes
User Manual Yes
Power Cord Yes
Batteries Yes
Dimensions & Weight
Product Dimensions (WxHxD) 15-7/8" x 5-3/4" x 13-1/2"
Product Weight 13 Lb
