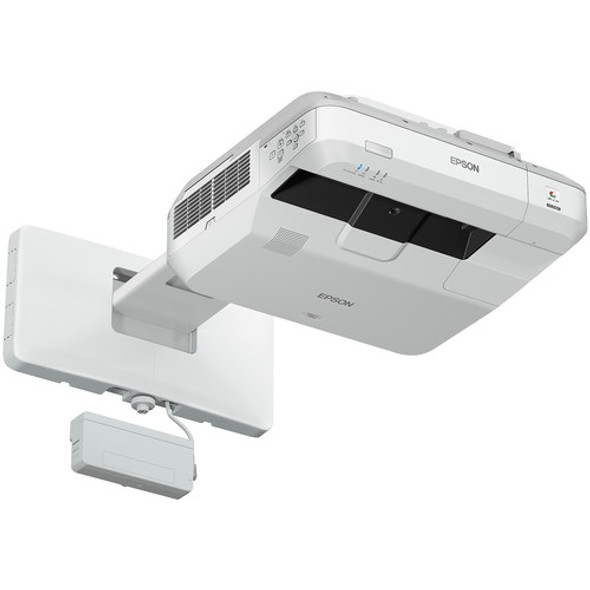

Transform your classroom into a collaborative learning space with the BrightLink 696Ui touch-enabled, Full HD WUXGA ultra short-throw interactive display. Featuring a powerful 3,800 lumens of color and white brightness1, the 696Ui delivers dynamic images up to 100″ — from as close as 10″ away. Turn almost any wall or existing whiteboard into an interactive workspace with pen- and touch-based interactivity — up to two pens or six users at one time. Wirelessly display content from a variety of devices — including Chromebooks — using the Epson iProjection™2 App with Moderator device management software3. Plus, it includes a 1-year subscription to SMART Notebook4.
Description
| contrast Ratio | 16000:1 | |||||||
|---|---|---|---|---|---|---|---|---|
| Speakers | 16 W Mono | |||||||
| Economode | 10000 hours | |||||||
| Audible Noise | 37 dB | |||||||
| Lamp Life | 5000 hours | |||||||
| Short Throw | Yes | |||||||
| Native Resolution | 1920 x 1200 | |||||||
| Display Technology | LCD | |||||||
| Aspect Ratio | 16:10 (WUXGA) | |||||||
| Image Size Diagonal | 59.8 - 99.6 | |||||||
| Inputs | 1 x Composite (RCA), 1 x VGA In (Dsub-15pin), 2 x HDMI, Network (RJ-45), 3 x USB, RS232 (DB-9pin), 2 x Audio In (Mini Jack) | |||||||
| Lens Shift | No | |||||||
| Outputs | VGA Out (Dsub-15pin), Audio Out (Mini Jack) | |||||||
| Data / Video Signals | 720p, 1080i, 1080p/60, 1080p/24, 1080p/30, 1080p/50, 576i, 576p, 480p, 480i | |||||||
| Digital Keystone | Horizontal and Vertical | |||||||
| Throw Distance | 5.7 - 9.5 | |||||||
| Unit Weight | 18.3 lbs | |||||||
| Lens | F = 1.6 | |||||||
| Projector Methods | Front, Rear, Ceiling Mount, Table Top | |||||||
| Lumens (ANSI) | 3800 ANSI Lumens | |||||||
| Dimensions (WxDxH) | 18.7 x 17.6 x 5.1 | |||||||
