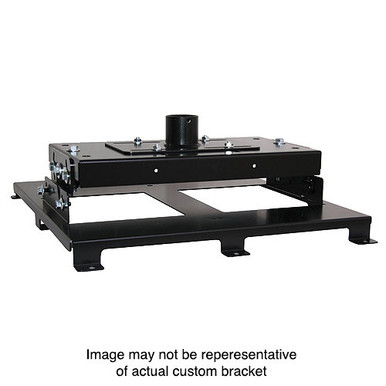

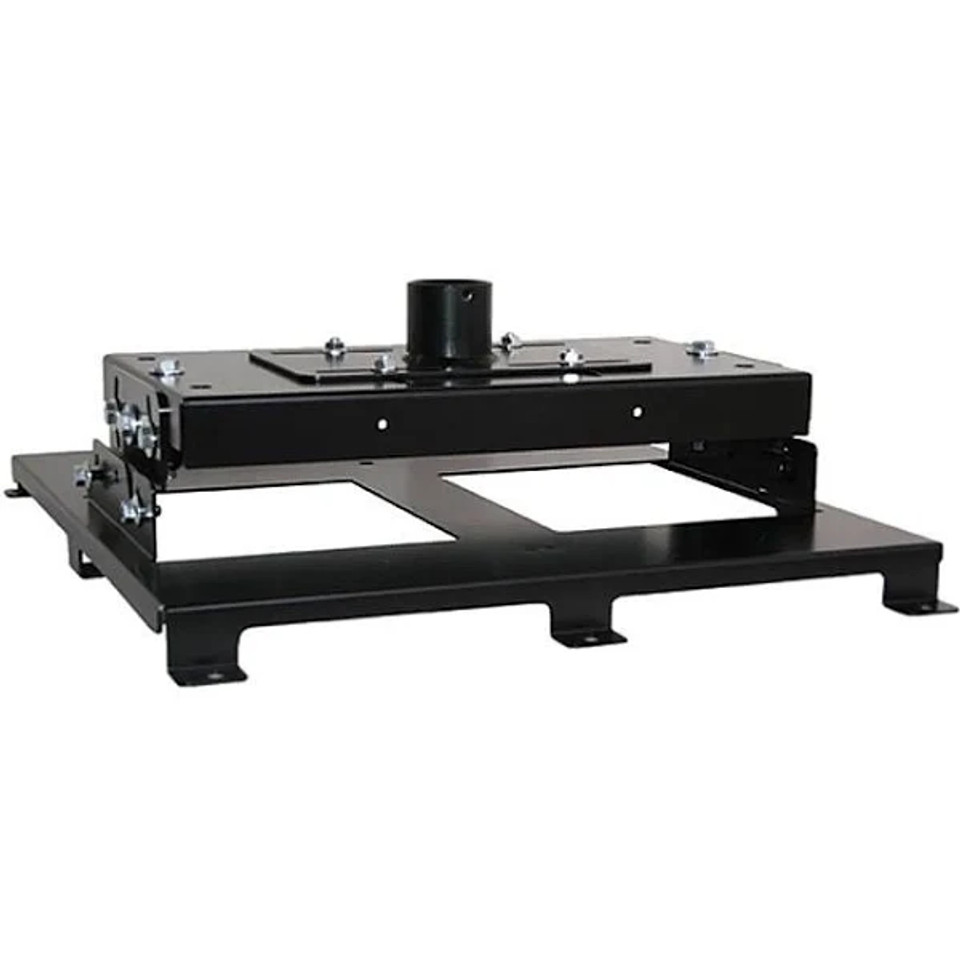

Chief VCM-76P Overview
The Heavy Duty Custom Ceiling Projector Mount from Chief can be used to mount LCD and CRT projectors. The mount is capable of independent roll, pitch, and yaw adjustments for projector registration. The mount can be flush mounted to the ceiling using threaded rods or an extension column. The quick connect/disconnect option allows for access to the lamp and filter for replacing projector parts, while the mount's top is designed to create simple cable management.
Independent roll, pitch, and yaw adjustments for projector registration
Quick connect and disconnect for lamp and filter access
Cable management available through the top of the mount
Chief VCM-76P Specs
| Adjustments | Roll: 5° Pitch: 20° Yaw: 360° |
| Load Capacity | 250.0 lb / 113.4 kg |
| Dimensions | 3.8 x 17.0 x 9.3" / 9.7 x 43.2 x 23.6 cm |
| Weight | Not specified by manufacturer |
| Compatibility | Compatible with the following Panasonic projectors: PT-RW630, PT-RW630BE, PT-RW630BU, PT-RW630L, PT-RW630LBE, PT-RW630LBU, PT-RW630U, PT-RZ670, PT-RZ670, PT-RZ670BE, PT-RZ670L, PT-RZ670LBE, PT-RZ670LBU, PT-RZ670U |
Packaging Info
| Package Weight | 25 lb |
| Box Dimensions (LxWxH) | 24 x 14.6 x 12" |
1 Year Parts & Labor Manufacture Warranty
