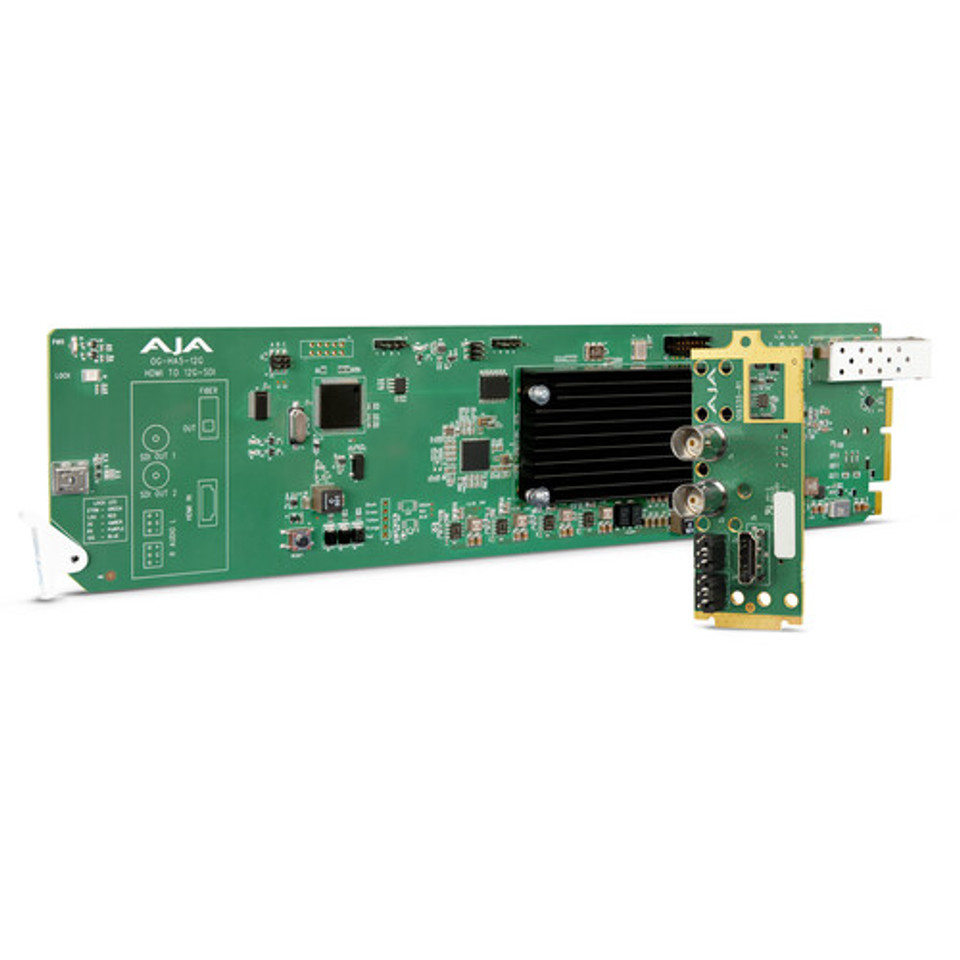

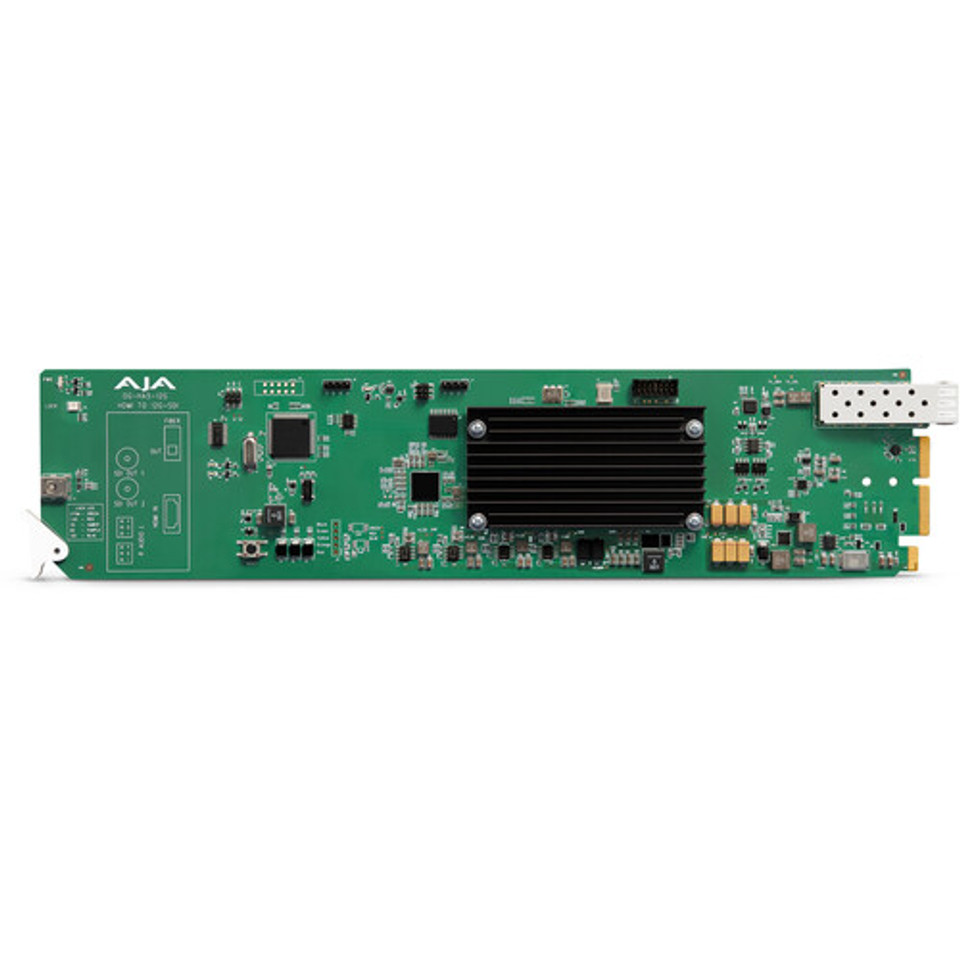

AJA OG-HA5-12G OpenGear HDMI 2.0 to 12G-SDI Converter

• Convert HDMI 2.0 to 4K/UHD 60 fps to 12G-SDI with a second mirrored output or separately available SFP Fiber module output
• Supports up to 60p input at 4:4:4/4:2:2/4:2:0
• Supports 12-bit workflows
• EDID LFR & HFR Emulation up to UHD 60p
• Real-time HDMI HDR Infoframe data reporting
• HDR signaling metadata pass-through and optional override
• Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Monitor and control via Ross DashBoard software
• 14W max per card

HDR (High Dynamic Range) provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.



The OG-HA5-12G provides support for analyzing HDR infoframe data coming in over HDMI.

Typical 4K signals use a resolution of 4096 x 2160 pixels while UHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UHD workflows. The OG-HA5-12G can compensate for these resolution differences, allowing UHD monitors to be used in 4K productions and vice versa.



The OG-HA5-12G also supports High Frame Rate (HFR) inputs. 4K/UHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

The equalized input on OG-HA5-12G is engineered to support HDMI runs up to 98' in length using 24-gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.

The 12G-SDI outputs on OG-HA5-12G allow extremely high-quality signal representation for use with large raster and deep color workflows where image quality is critical.

A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green), HD (red) or 4K/UHD (orange) for fast and easy signal identification.

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

The modular rear panel allows custom I/O connections per card.

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

A standard Ethernet connection allows the frame to be accessed via the Ross Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
