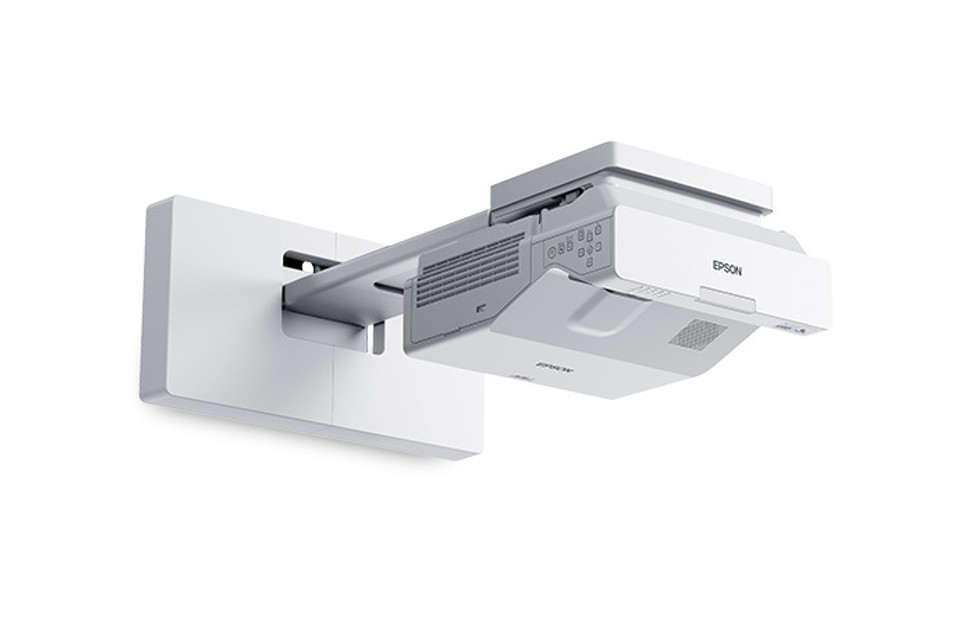

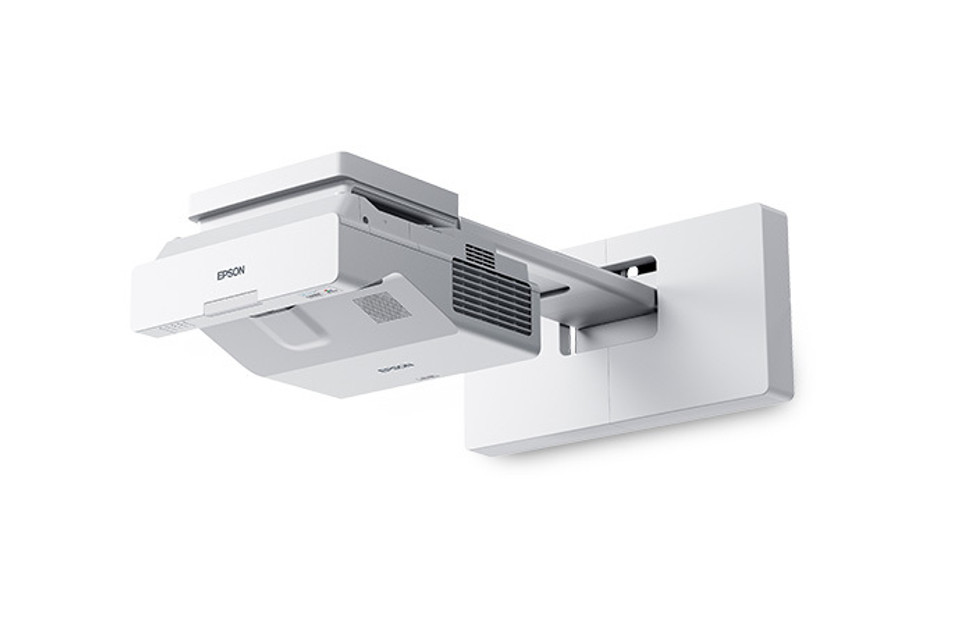

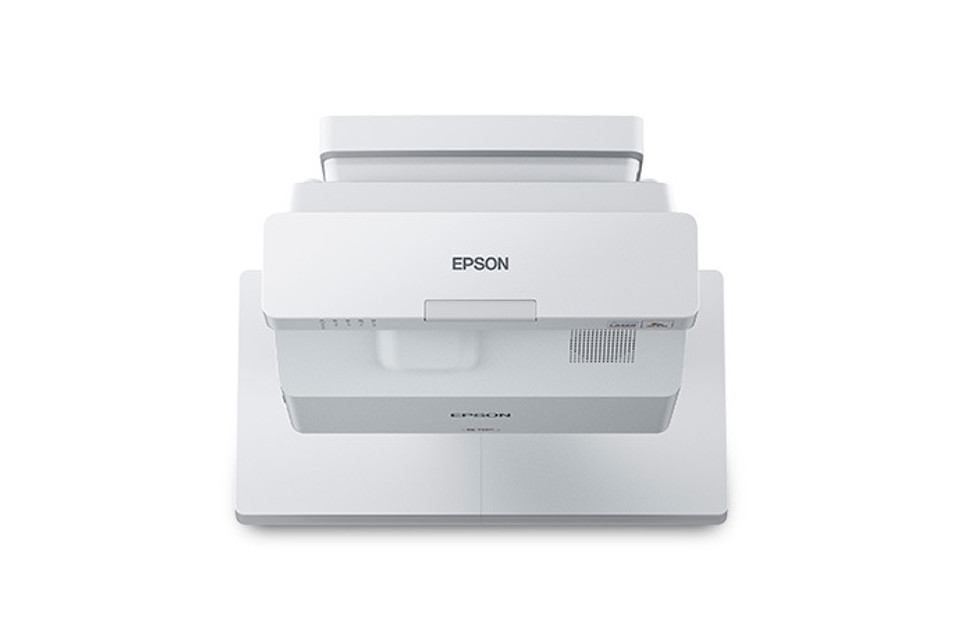

Epson BrightLink 735Fi 1080p 3LCD Interactive Laser Display

Create engaging, collaborative learning environments with this ultra-bright interactive laser display.

Maximize engagement and productivity in the classroom with the dynamic BrightLink 735Fi interactive laser display. Providing 3,600 lumens of color and white brightness, Full HD 1080p and 3LCD technology, the BrightLink 735Fi delivers ultra-bright, true-to-life 16:9 images up to 100" and 110" 16:6 ultra-wide displays, which allows users to share content from devices² and the built-in electronic whiteboard at the same time. A convenient and seamless solution, the BrightLink 735Fi supports wireless interactivity using Miracast and features a virtually maintenance-free, 20,000-hour laser light source engine with no lamps to replace ever. Designed to enhance classroom collaboration, the BrightLink 735Fi offers up to 75 percent more interactive space vs. 75" flat panels⁴ and allows multiple users to share and create content without a PC.

• 3,600 lumens of color/white brightness
• Full HD 1080p display; project 16:9 and 16:6 images
• 20,000-hour laser light source; no lamps
• Up to 75% more interactive space vs. 75" flat panel
• Time-saving installation

• PC-free digital whiteboard — draw, save, print and email without a PC; also view shared whiteboard content from other networked BrightLink projectors
• Built-in 5GHz wireless — supports wireless interactivity via Miracast and wireless displays using Epson iProjection software to connect; display and share content simultaneously to/from up to 50 connected devices²
• Easy-to-use interactive home screen — with image preview capability makes source selection easier than ever
• SMART Learning Suite — includes 1-year subscription and support for SMART Notebook, SMART amp, SMART lab™, SMART Learning Suite Online and more

Eco Features

• Recyclable product
• RoHS compliant
• Epson America, Inc. is a SmartWay^SM Transport Partner

Specifications
Projection System Epson® 3LCD, 3-chip technology
Projection Method Front/rear/wall mount/table mount
Driving Method Epson Poly-silicon TFT Active Matrix
Pixel Number 2,073,600 dots (1920 x 1080) x 3
Color Brightness Color Light Output: 3,600 lumens
White Brightness White Light Output: 3,600 lumens
Native Aspect Ratio 16:9
Native Resolution 1920 x 1080 (1080p HD)
Light Source Laser
Light Source Life Up to 20,000 hours
Size (Projected) (16:9) 100"; (16:6) 110"
Keystone Correction (Manual) Horizontal: ± 3 degrees;
Vertical: ± 3 degrees
USB Plug ’n Play Mac OS® 10.8/10.9/10.10/10.11/10.12/
10.13/10.14/macOS 10.15.x
USB Plug ’n Play for Windows Windows 7/Windows 8/
Windows 10
Contrast Ratio Up to 2,500,000:1
Color Reproduction Up to 1.07 billion colors
Wireless Specifications
Supported Security Mode
OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
Supported EAP Type PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Supported Speeds:
IEEE 802.11b: 11 Mbps* (2.4 GHz)
IEEE 802.11g: 54 Mbps* (2.4 GHz)
IEEE 802.11n: 72.2 Mbps* (2.4 GHz)
IEEE 802.11a: 54 Mbps* (5 GHz)
IEEE 802.11n: 150 Mbps* (5 GHz)
IEEE 802.11ac: 325 Mbps* (5 GHz)
*Maximum speed and range is achievable when used with the
same Enhanced Mode technology. Actual data rates, features
and performance may vary depending on your computer
system, the environment and other factors.
Projection Lens
Type Manual focus
F-Number 1.6
Focal Length 3.7 mm
Throw Ratio Range .26 - .36 (16:9)
Zoom Ratio Digital zoom 1.0 – 1.35x
Other
Speaker 16 W monaural
Operating Temperature 41 ̊ to 104 ̊F (5 ̊ to 40 ̊C)
Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz
Power Consumption
Quiet Mode: 206 W
Normal Mode: 267 W
Standby (Communication On): 2.0 W
Standby (Communication Off): 0.5 W
Fan Noise
Quiet Mode: 26 dB
Normal Mode: 36 dB
Security Kensington lock provision, security anchor bar,
password-protection function
Interfaces
HDMI®: 3
Composite Video: 1x RCA (Yellow)
Audio In: 3x Mini stereo
Audio Out: 1x Mini stereo
Microphone in: 1x Mini stereo
USB Connector: 2x Type A (1x USB memory/document camera;
1x Wireless only)
USB Connector: 2x Type B (USB display with audio and interactivity)
Serial: 1x RS-232c
Monitor Out/Computer: 1x D-sub 15 pin
Computer: 1x D-sub 15 pin
Integrated Wireless LAN: 802.11 b/g/n/ac
Interactive Synchronization Mini stereo In
Interactive Synchronization Mini stereo Out
Touch Unit Connection Port
Interactivity
Interactive Technology Infrared, 850 nm
Interactive Area (Image Size) 100" diagonal (16:9);
110" diagonal (16:6)
Interactive Modes Computer Interactivity, PC-free and
Whiteboard Annotation Mode, Pen: Dual User, Finger Touch: Up
to 6 points of touch
PC-free Annotation Two pens and two fingers
Interactive Tools Epson Easy Interactive Tools, Two pens and
six fingers
PC Interactive Sources USB, HDMI, Computer 1, Computer
2, LAN, Miracast
PC-free Annotation Devices Document Cameras, DVD/ Blu-
ray Disc® player, iPod®/iPad® devices, Chromebooks
Calibration Method Automatic or Manual
Interactive Connectivity USB cable for non-networked LAN
Interactive Software Requirements
Epson Easy Interactive Driver (required for Mac)
Mac®: Mac OS X® 10.12/10.13/10.14/macOS 10.15.x
Epson Easy Interactive Tools for Windows and Mac
System Compatibility Microsoft® Windows Vista, Windows
Vista SP1, Windows Vista SP2 (All editions except for Starter),
Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions
except for Starter), Mac OS 10.11/10.12/10.13/10.14/
macOS 10.15.x
Gestures Requires Windows 7 or later, or Mac OS 10.12 or
later
SMART Learning Suite System Requirements
Supported Operating Systems Windows 7 SP1, Windows
8/8.1, Windows 10, Mac OS X 10.12, 10.13, 10.14, 10.15
Minimum Processor
Intel Core 2 Duo (Mac)
Intel Core m3 (Windows)
Minimum RAM 4 GB (8 GB for UHD displays)
Minimum Hard Disk Space 4.7 GB (Windows); 2.3 GB (Mac)
Dimensions (W x D x H)
Excluding Feet 14.1" x 15.6" x 5.25"
Weight 12.7 lb
