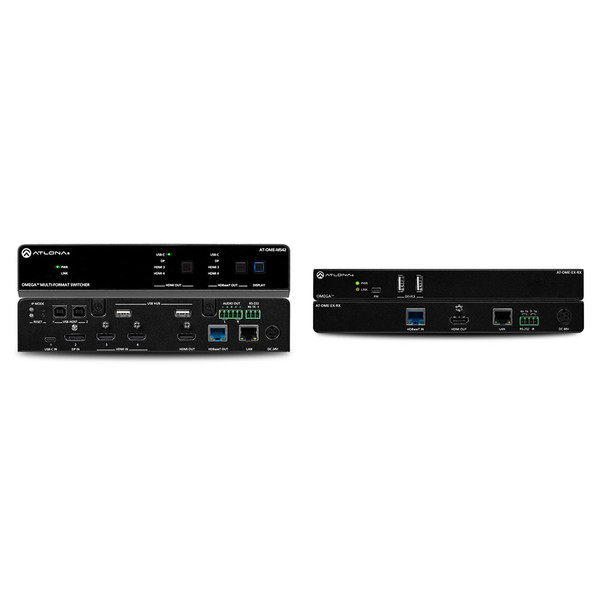

he Atlona AT-OME-MS42 is a versatile 4ÿ2 matrix switcher and HDBaseT transmitter with HDMI, DisplayPort, and USB-C inputs, and mirrored HDMI and HDBaseT outputs. It's perfect for video conferencing applications with built-in USB interfacing and extension to a display.
The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). The OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals
- Matrix switch with 4 USB ports
- Extension of USB up to 100 metres
- Automatic Display Control
- All-in-one matrix switch, scaler and extender
- Reliable auto switching
- Selectable 4K to 1080p downscaling
- EDID and HDCP 2.2 management
- Optional AT-OCS-900N occupancy sensor available
- Field updatable firmware
Specifications
| Brand | Atlona |
| Product category | HDMI matrices |
| Connections | HDMI, RJ45, Terminal block, USB |
| Connections (in) | DisplayPort female (x1), HDMI A (full-size) female (x2), RJ45 female (x1), USB C female (x1) |
| Connections (out) | HDMI A (full-size) female (x2), RJ45 female (x1), Terminal block 5-pin female (x1) |
| 4K compatible | Yes |
| Max. resolution @ 60Hz | 2160p |
| Video signal | DisplayPort, HDMI |
| Supported features | EDID, HDCP |
| HDMI specification | HDMI High Speed |
| DisplayPort specification | DisplayPort 1.2 |
| HDBaseT specification | HDBaseT 5play |
| Other signals | Digital audio, RS-232 |
| Control method | Button, Serial, Software |
| Power supply | External power supply |
| Included | Power adapter |
| Brand item no. | AT-OME-MS42-KIT |
Limited Warranty 10 Year
