Product Overview

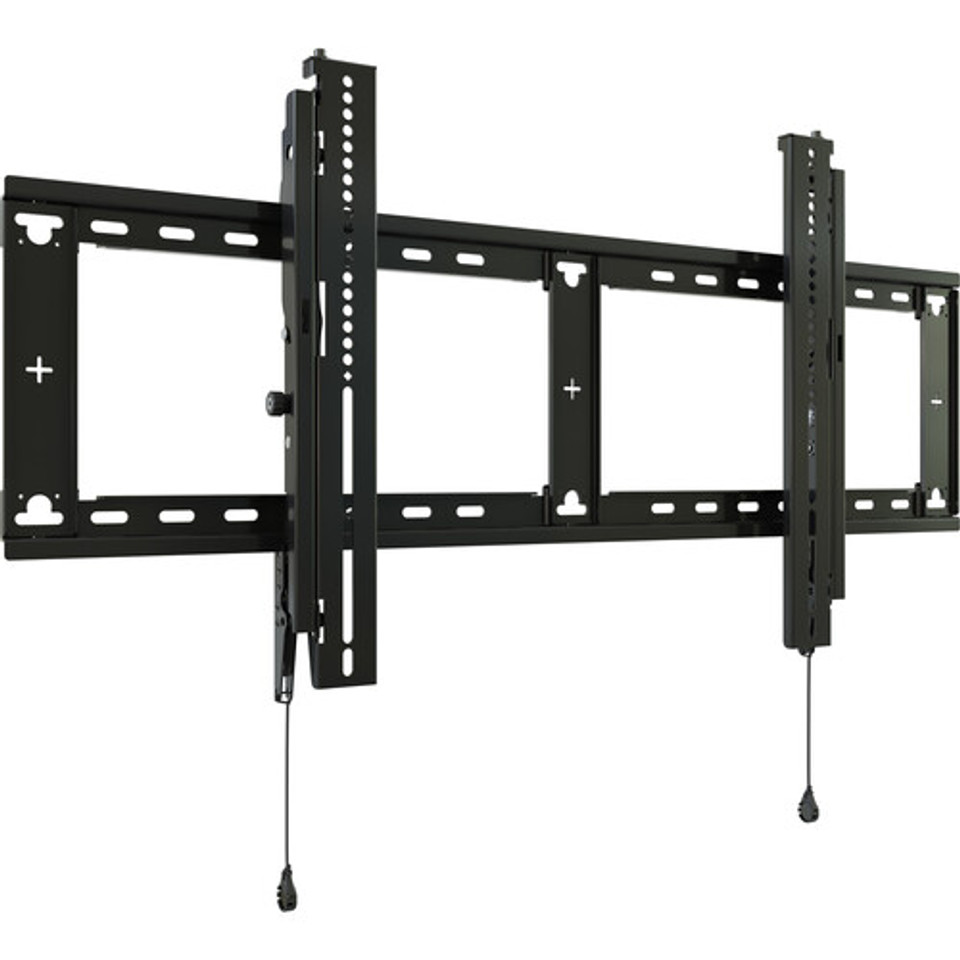

The Chief RLT3 Fit Tilt Wall Mount is engineered to accommodate flat-panel displays ranging from 42 to 86 inches, with a maximum weight capacity of 175 lbs (79.4 kg). This mount features a low-profile design, keeping the screen close to the wall while offering a clean and discreet appearance. Its tilt functionality provides an adjustable range of +10° forward to -5° backward, helping reduce screen glare and improve viewing angles. The RLT3 supports a wide variety of VESA mounting patterns up to 800 x 400 mm, making it compatible with most large-format displays. Additional features include post-installation lateral shift for horizontal adjustment, integrated safety tabs for secure placement, and a locking mechanism to prevent unauthorized removal. Designed for fast installation, the mount includes keyhole slots and durable hardware suitable for both commercial and residential use.
Ideal for homes and businesses that want to securely mount a TV to the wall, the Fit Tilt Wall Mount for 42 to 86" Displays from Chief provides a rigid wall plate that can support up to 200 lb. The plate features an open design that allows it to accommodate mounting around power and data wall boxes and delivers a low-profile 2" depth that's in compliance with ADA regulations. Once mounted, adjustment is possible with a leveling screw and the toolless GlideLock feature that offers lateral shifting of the display. When in place, you can tilt the display up to 12° to obtain the best viewing angle in your location.
Product Features
-
Supports flat-panel displays from 42" to 86"
-
Weight capacity up to 175 lbs (79.4 kg)
-
Tilt range: +10° to -5° for glare reduction and viewing flexibility
-
Compatible with VESA patterns up to 800 x 400 mm
-
Low-profile design with less than 2.1" depth from the wall
-
Post-installation lateral shift for precise alignment
-
Integrated safety mechanism for added security
-
Quick and simple installation with keyhole mounting slots
-
Two easy access magnetic quick-store release pullcords
-
Kickstand allows each access to power and signal connections
-
Supports an optional theft deterrent security accessories from Chief
- Supports a 915 x 450 mm display mounting pattern
Highlights
• Designed for Large Displays: Supports screen sizes from 42 to 86 inches and up to 175 lbs in weight, making it ideal for mounting large-format TVs or digital signage displays in various settings.
• Tool-Free Tilt Adjustment: Allows users to tilt the screen forward up to 10 degrees and backward up to 5 degrees to improve visibility and reduce glare without the need for additional tools.
• Universal VESA Compatibility: Works with a wide range of mounting patterns, including VESA sizes up to 800 x 400 mm, providing flexible compatibility with most major display brands.
• Low-Profile Appearance: Keeps the display close to the wall with a depth of just over 2 inches, offering a sleek and unobtrusive look suitable for home theaters, conference rooms, and public spaces.
• Secure and Adjustable Mounting Features: Includes a locking mechanism for added safety, lateral shift adjustment for centering the screen, and integrated safety tabs for simplified installation.
Specs
| Compatible Models | |
| Mounting-Hole Pattern | |
| Load Capacity | |
| Mounting Compatibility | |
| Adjustments | |
| Orientation | |
| Distance from Mounting Surface | |
| Material of Construction | |
| Certifications | |
| Dimensions |
| Package Weight | |
| Box Dimensions (LxWxH) |
